Laboratory In-House Testing

Equipment/Apratus Detail Equipment Capacity Testing Purpose Testing as per Standards
ASTM IS
Testing Equipments used for Narrow Fabrics / Braided Cords / Ropes / Twines
Measuring Scale 1.0 - 300 mm & 1000 mm To measure length and dimension - IS 1954 : 1990
Electronic Weighing Balance (0.2g & 0 - 200g) To check Weight/Mtr & GSM of fabrics ASTM D3776 IS 1964 : 2001
Yarn Twist Tester (Automatic) 0-99999 counts To find out the T.P.I/T.P.M & Ply/Fold of
Yarns, threads & Twines
ASTM D1423 IS:832-1985
Digital Tensile Testing Machine 20 kgf(0.01kgf to 20.00kgf) To measure the Tensile/Breaking strength of yarns PIA-Test Method-4108
Digital Tensile Testing Machine Capacity 50 Kgf To measure the Tensile/Breaking strength of yarns AATCC 20
Laboratory Chemicals N/A For nature of fiber identification & material analysis - IS :667:1981
Digital Melting Point Apparatus 25 ̊C to 350 ̊C For Determine the melting point of nylon yarn material PIA-Test Method-4108 IS 1969 : 1985
Vernier Calipers /Rope Gauge 0.02mm, & 0-150 mm To measure Dimensions & Gauge/Dia of Ropes/Cords ASTM D3774 IS:7071-1989(Pt.-03)
Counting/Pick Glass 25mm To measure threads/unit length ASTM D3775 IS 1963 : 1981
Thickness Gauge 0 - 10 mm & LC 0.01 mm To measure thickness of Webbing/Tapes/Fabrics ASTM D1777 IS:7702-1975
Color Matching Cabinet N/A To check Assesment of shade & Tone on diffrent light effects ASTM D4086 -
Spectrophotometer - For Monitoring Colour Accuracy ASTM C1510 -
Conditioning Chamber with thermostat Range 0-110 ̊C For conditioning the samples before testing - IS 6359-1971
Oven with timer and Temp Control 1 ̊C - 300 ̊C To measure the moisture regain, drying etc ASTM D2654-22 IS 6365-1971
Abrasion Testing Machine N/A For Tape / Webbing Abrasion Purpose ASTM D6770-02 -
Digital Tensile Testing Machine Capacity 500 Kgf To measure the tensile strength of cords & Twines PIA-Test Method-4108 IS 1969 : 1985
Digital Tensile Testing Machine Capacity 20,000 Kgf To measure tensile of Webbing,Tapes,Rope,etc PIA-Test Method-4108 IS 1969 : 1985
EN-12195:2:2000
Digital Tensile Testing Machine Capacity 100,000 Kgf To measure tensile of Webbing,Tapes,Rope,etc PIA-Test Method-4108 -
Horizontal Tensile Testing Machine Capacity 5,000 Kgf To measure tensile of Webbing, Tapes, Ropes, Meta Fittings, Harness, etc. PIA-Test Method-4108 -
Hot Plate (Heating Plate) 0 to 100°C For Tape/Webbing Heating & Boiling Purpose ASTM C177-19 -
Thermometer (-)10 ̊C. UpTo 10 ̊C.) To measure temprature ASTM E1-01 IS 2480-2(1982)
P .H. Metre (Electronic/Digital) 0.1 pH & 0 - 14 pH To find out Acidic & Alkline nature AATCC81 IS:1390
Grey Scale N/A Assesment of Rating (Washing & Staining) ASTM D2616-12 ISO 105 A02:1993
Cold Chamber 0 ̊C to -(45) ̊C For cold conditioning the sample before testing ASTM C1199 -
Flammability Tester 0.1 Sec & 0-999.9 Sec For Flame Retardentency on Webbings Tapes & Fabrics ASTM D1230 IS: 15061-2002
Crock Meter 0 - 99999 For color fastness To Rubbing AATCC 8 IS :766-1988
Stop Watch N/A To count minutes & seconds For holding any test ASTM E2658-15 -
Digital Yarn Tension Meter - To measure the yarn tension on warping & weaving processg - -
Digital Salt Spray Chamber 0 ̊C to 110 ̊C Testing corrosion resistance for metals, alloys. : ASTM B117 IS 9844
Equipment/Apratus Detail Equipment Capacity Testing Purpose Testing as per Standards
ASTM IS
Equipments For Wider Fabrics
Bundasmann Appratus - To measure Water repellency (BWR Test) of fabrics - IS:6803:1972
Pressure Head N/A To measure Water repellency of fabrics - IS:2422,ANX.2
Cone Testing 25 ̊C to 350 ̊C To measure Water repellency - IS :7941:1976
Launderometer - for conducting accelerated laundering or dyeing tests - IS:764 & 4802-1988
Shrinkage tub N/A To measure Dimentional change/Stability of fabric - IS:2977-1989
Spray Tester N/A For Water Repllency test on fabrics - ISO:4920:1981
Bursting Strength Tester - To measure the bursting strength of Fabrics - IS :1966:1975
De-Matia Flexing 0.02mm, & 0-150 mm To check crackness of pucoated fabric - IS:3400-Pt.01 & 07
Pilling Tester - To check Pilling strength of pile fabric ASTM D3511-05 IS:10921-1994
Furness - To find out the Ash Content - IS:6803:1972
Others
Beslay Balance - To find out Linear Density of cotton yarn ASTM D1907/1907M IS 1315 : 1977
Persperometer - For color fastness to perspiration, to water & bleaching AATCC TM15 IS:971-1983
Tecometer - To measure the RPM of M/C - -
Shoxlet Apparatus N/A 1. To Check % of Prooffing Copper Ash Content
2. To Check % of Scouring (MADI) Loss
ASTM C613-19 IS:6803,ANX.D
IS:1383-1993

Our Testing Laboratory

VIRAJ Quality Management System (QMS) is certified to ISO 9001:2015.
Quality efforts include an emphasis on continuous improvement and defect prevention.

Over the years we have implemented a full-scale R&D laboratory, manufacturing/weaving facilities along with a processing and finishing plant, redefining our role from a weaver and coater to a total textile solution provider.

VIRAJ in-house Quality Assurance Laboratory operates daily to assure conformance to specifications at every stage of production. Customers can be assured that all military, aerospace, Fall Protection, Cargo Lifting Slings and customer-specific requirements will be met.We are able to provide 100% traceability of our goods and provide all appropriate supporting documentation

Conditioning Chamber with Thermostat Range (0-110 C)

Electronic Weighing Balance (0.001g & 0-220g).

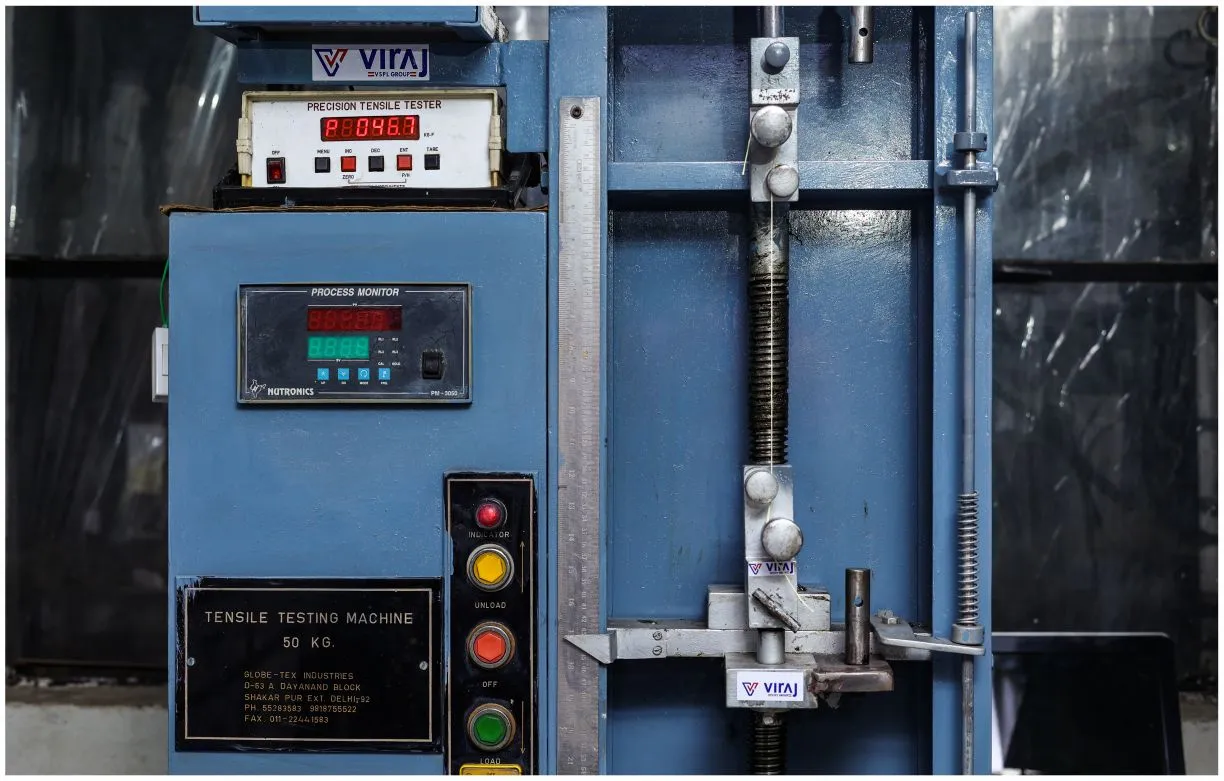

Digital Yarn Tensile Testing , Capacity 50 kgf

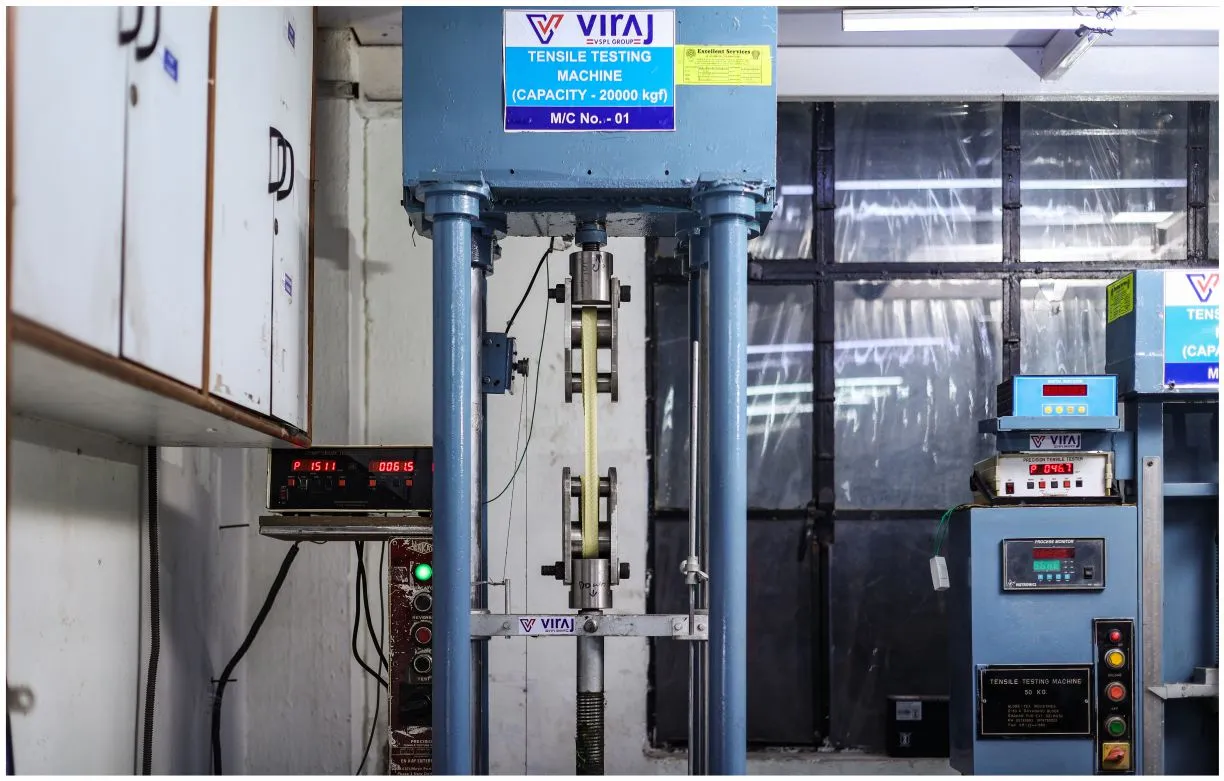

Digital Tensile Testing Machines (20,000 Kgf max)

Digital Tensile Testing Machines (100,000 Kgf max)

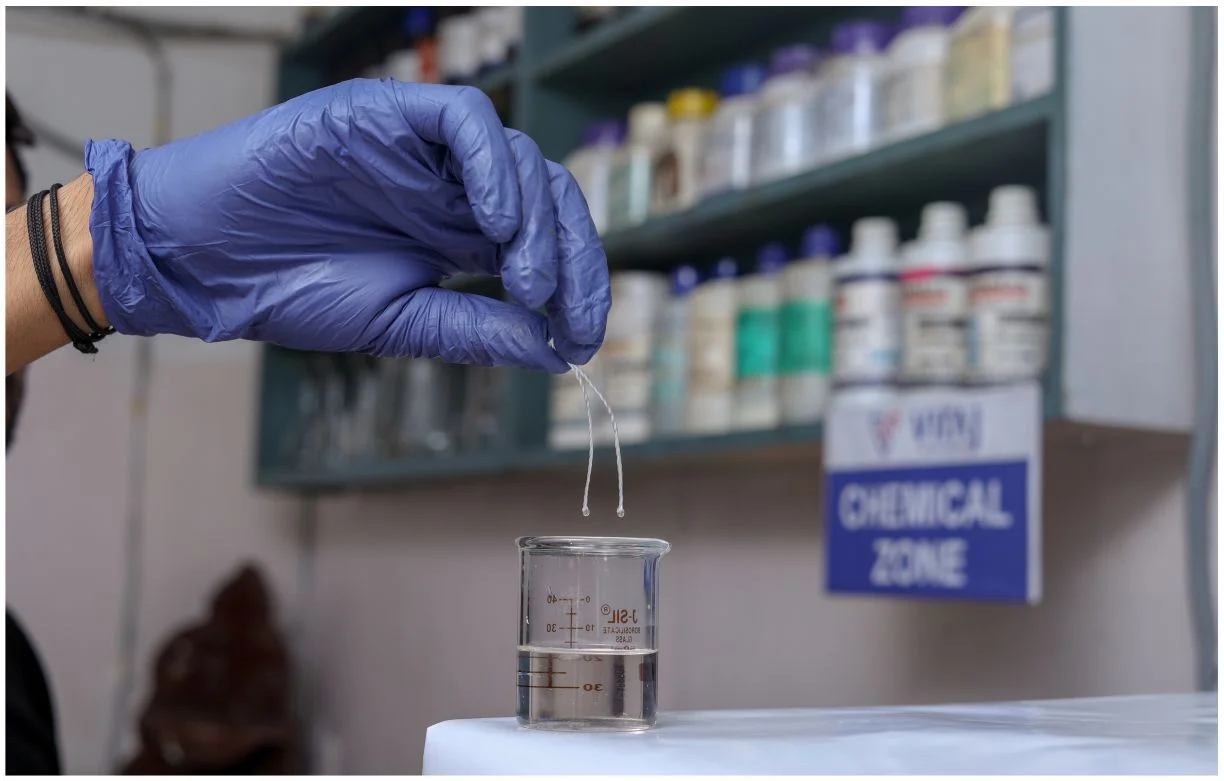

Chemical Analysis for Fibre Identification

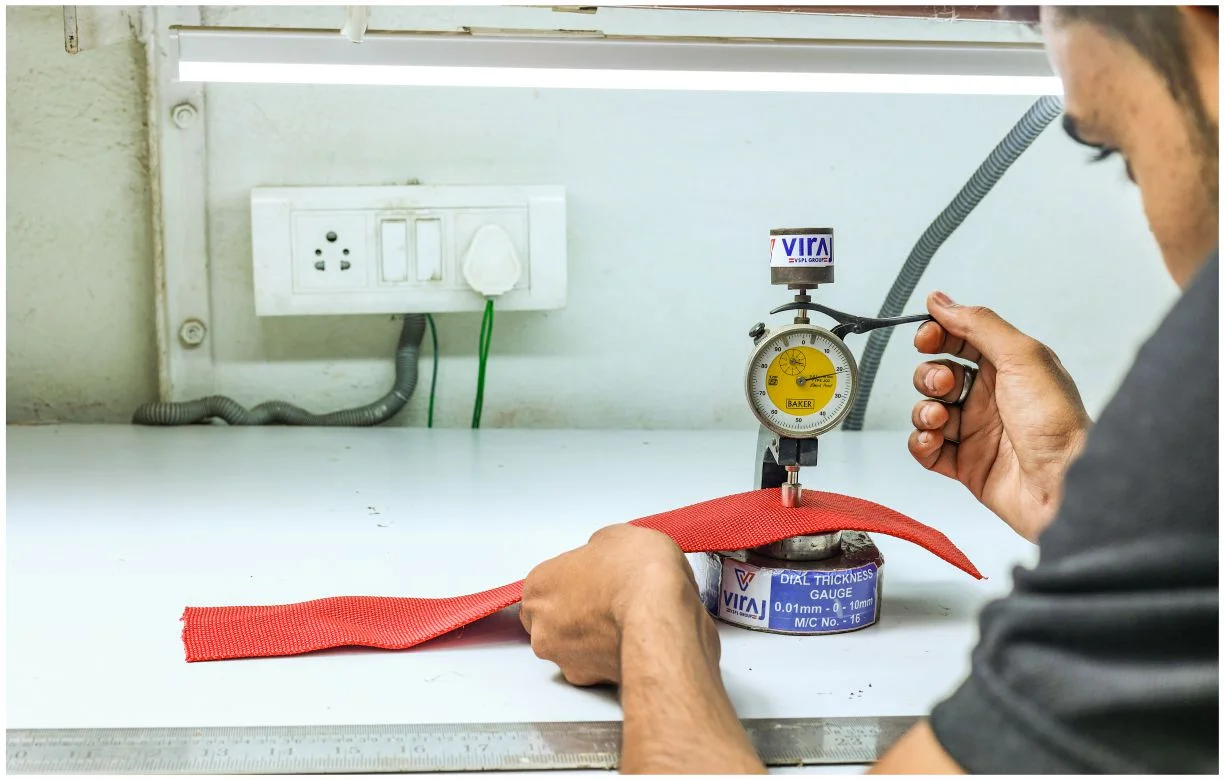

Thickness Gauge (0-10 mm & LC 0.01 mm)

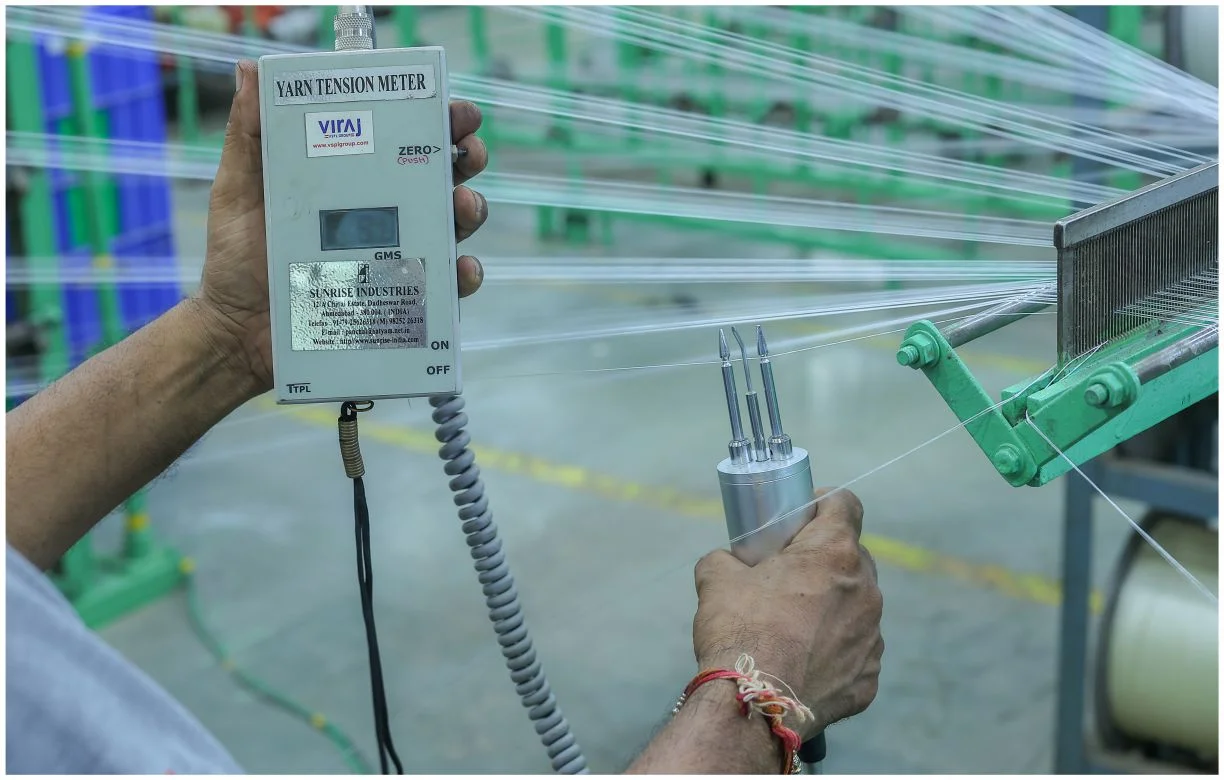

Digital Yarn Tension meter

Twist Tester Motorized (0-99999 counts)

Crock Meter/Rubbing-Wet & Dry

Counting/Pick Glass (1.0 x 1.0 inch)

Digital Ph Testing Meter

Digital Yarn Melting Point Testing

Washing Fastness Testing (Laundering)

Shade matching cabinet

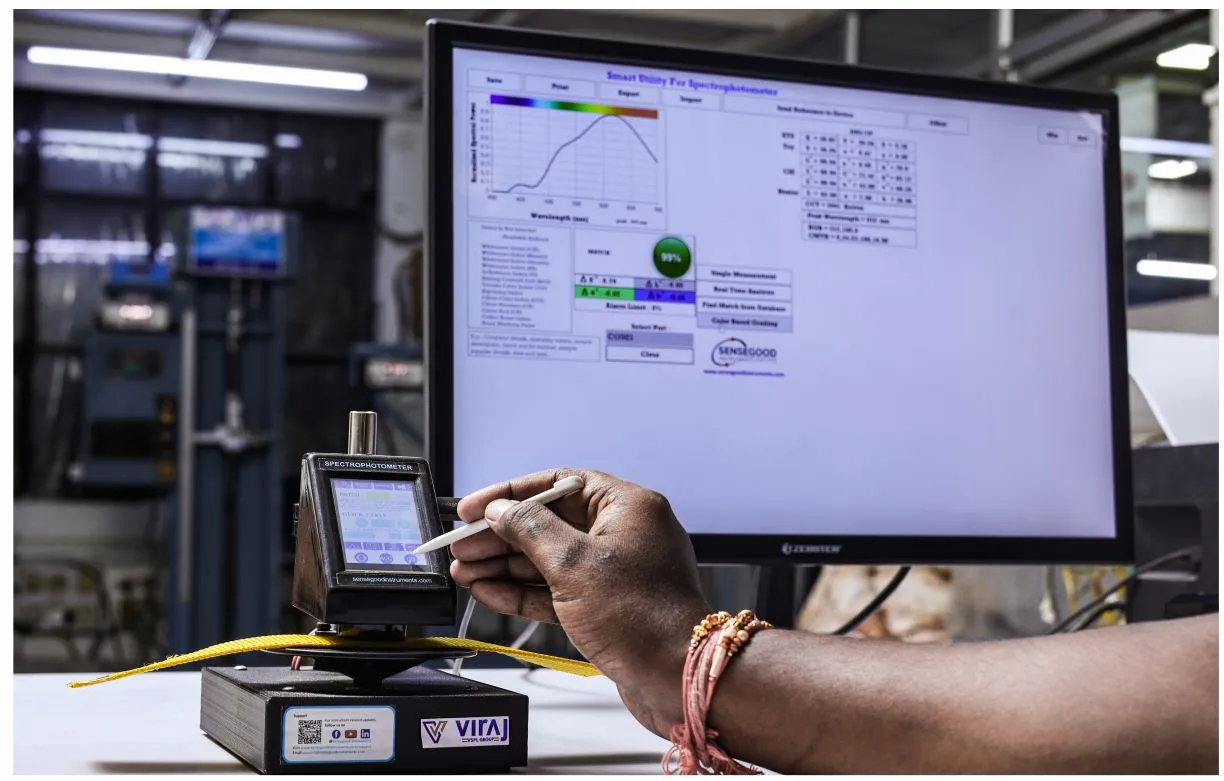

Spectrophotometer for shade matching testing

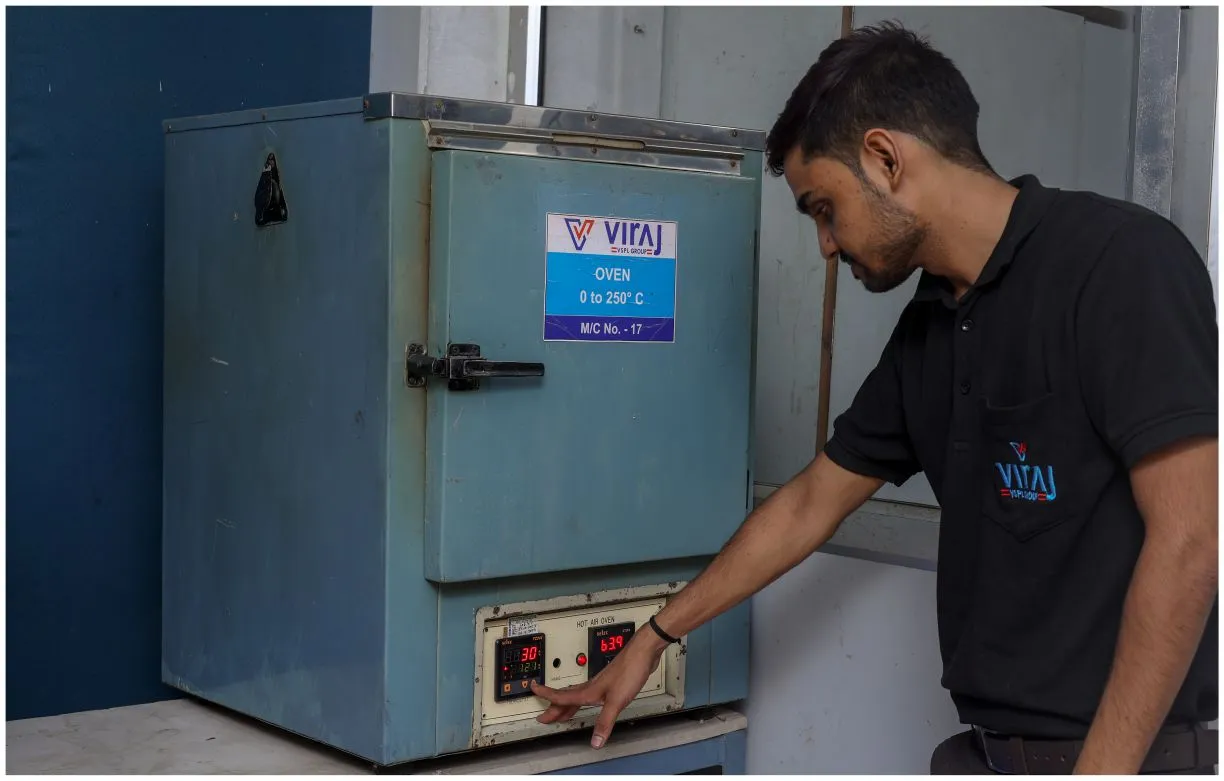

Oven with timer and Temp. Control (1o C - 250o C)

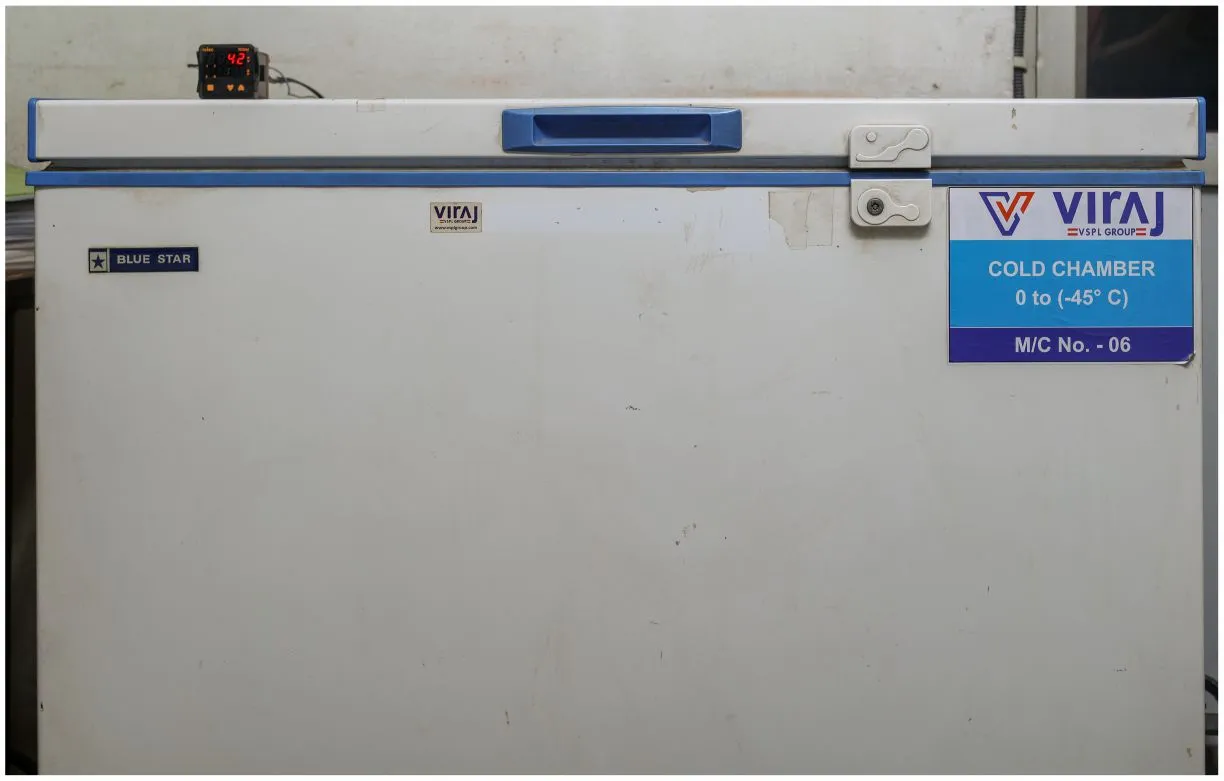

Cold Conditioning Chamber upto - 45 degree

Webbing Abraision Cyclic testing

Force/Impact measuring

Resistance to Heat

Resistance to Light

Lab Office

Lab Office

Physical Lab

Chemical Lab
