Mil-PIA-Spec - Nylon - MIL-T-5038H
MIL-T-5038 H, TAPE, TEXTILE AND WEBBING, TEXTILE, REINFORCING, NYLON
Shuttle Loom
Tapes & Webbings can be Supplied in any shades with Resin Treatment as per MIL-W-27265 E Class R
| Our Code | Type | Class | Width/Dia (Inch) | Thick(Inch) | B/S (Min) pound | Elong % (Min) at Break | Pick(Inch) | Weave |
|---|---|---|---|---|---|---|---|---|
| NWFS-PIA-9092 | II | 1 | 1 ± 1/32 | 0.025 - 0.035 | 900 | 18 | 40 | Herringbone Twill |
| NWFS-PIA-9093 | II | 1 | 1 - 1/2 ± 1/32 | 0.025 - 0.035 | 1300 | 18 | 40 | Herringbone Twill |
| NWFS-PIA-9094 | II | 1 | 2 ± 1/32 | 0.025 - 0.035 | 1700 | 18 | 40 | Herringbone Twill |
| NWFS-PIA-9095 | III | 1 | 3/8 ± 1/32 | 0.015 - 0.025 | 200 | 18 | 33 | Plain |
| NWFS-PIA-9096 | III | 1 | 1/2 ± 1/32 | 0.015 - 0.025 | 250 | 18 | 33 | Plain |
| NWFS-PIA-9097 | III | 1 | 3/4 ± 1/32 | 0.015 - 0.025 | 400 | 18 | 33 | Plain |
| NWFS-PIA-9098 | III | 1 | 1 ± 1/32 | 0.015 - 0.025 | 525 | 18 | 33 | Plain |
| NWFS-PIA-9099 | III | 1 | 1 - 1/2 ± 1/32 1/2 + 1/32 | 0.015 - 0.025 | 850 | 18 | 33 | Plain |
| NWFS-PIA-9100 | IV | 1 | 1/16 5/8 + 1/32 | 0.030 - 0.040 | 550 | 18 | 48 | Double Plain |
| NWFS-PIA-9101 | IV | 1 | 1/16 | 0.030 - 0.040 | 625 | 18 | 48 | Double Plain |
| NWFS-PIA-9102 | IV | 1 | 1 + 1/32, -1/16 1-1/8 + 1/32 | 0.030 - 0.040 | 1000 | 18 | 48 | Double Plain |
| NWFS-PIA-9103 | IV | 1 | 1/16 | 0.030 - 0.040 | 1100 | 18 | 48 | Double Plain |
| NWFS-PIA-9104 | IV | 1 | 1-1/2 + 1/32, - 1/16 | 0.030 - 0.040 | 1500 | 18 | 48 | Double Plain |
| NWFS-PIA-9105 | V | 1 | 9/16 ± 1/32 | 0.020 - 0.030 | 500 | 18 | 32 | Herringbone Twill |
| NWFS-PIA-9106 | VI | 1 | 3/4 ± 1/32 | 0.020 - 0.030 | 425 | 18 | 38 | Herringbone Twill |
| NWFS-PIA-9107 | VII | 1 | 1 ± 1/16 | 0.012 ± 0.020 | 325 | 18 | 46 | Plain |
| NWFS-PIA-9108 | VII | 1 | 2 ± 3/32 | 0.012 ± 0.020 | 550 | 18 | 46 | Plain |
| NWFS-PIA-9109 | VII | 1 | 3 ± 3/32 | 0.012 ± 0.020 | 1000 | 18 | 46 | Plain |
NWFS-PIA-9092
Tape, nylon, 9/16 inch wide
PIA-T-5038 Type II
Herringbone Twill Weave
Thickness: 0.025-0.035 inch
Tensile strength: min. 900 lbs
Shade: Foliage Green
$ 0.172 per yard
Get this deal
NWFS-PIA-9093
Tape, nylon, 1-1/2 inch wide
PIA-T-5038 Type II
Herringbone Twill Weave
Thickness: 0.025-0.035 inch
Tensile strength: min. 1300 lbs
Shade: Beige
$ 0.256 per yard
Get this deal

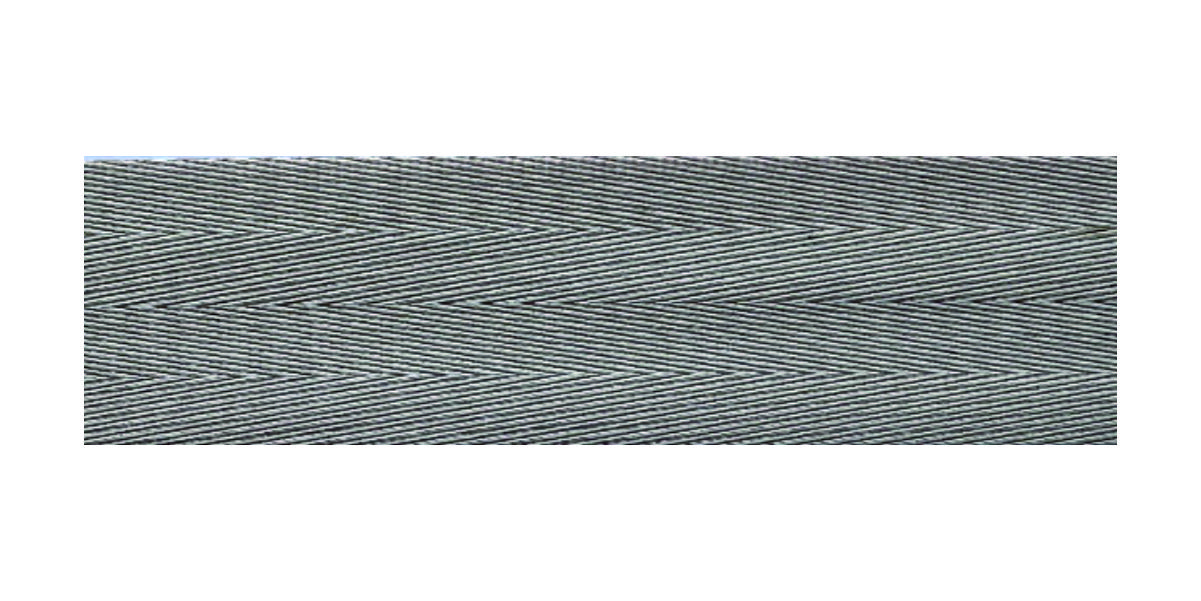

NWFS-PIA-9094
Tape, nylon, 2 inch wide
PIA-T-5038 Type II
Herringbone Twill Weave
Thickness: 0.025-0.035 inch
Tensile strength: min. 1700 lbs
Shade: Beige
Request a quote
Get this deal
NWFS-PIA-9095
Tape, nylon, 3/8 inch wide
PIA-T-5038 Type III
Plain weave
Thickness: 0.015-0.025 inch
Tensile strength: min. 200 lbs
Shade: Foliage Green
Request a quote
Contact Us
NWFS-PIA-9096
Tape, nylon, 1-1/4 inch wide
PIA-T-5038 Type III
Plain weave
Thickness: 0.015-0.025 inch
Tensile strength: min. 250 lbs
Shade: Foliage Green
Request a quote
Contact Us
NWFS-PIA-9097
Tape, nylon, 3/4 inch wide
PIA-T-5038 Type III
Plain weave
Thickness: 0.015-0.025 inch
Tensile strength: min. 400 lbs
Shade: Foliage Green
Request a quote
Contact Us
NWFS-PIA-9098
Tape, nylon, 1 inch wide
PIA-T-5038 Type III
Plain weave
Thickness: 0.015-0.025 inch
Tensile strength: min. 525 lbs
Shade: Foliage Green
Request a quote
Contact Us
NWFS-PIA-9099
Tape, nylon, 1-1/2 inch wide
PIA-T-5038 Type III
Plain weave
Thickness: 0.015-0.025 inch
Tensile strength: min. 850 lbs
Shade:Foliage Green
Request a quote
Contact Us
NWFS-PIA-9100
Tape, nylon, 1/2 inch wide
PIA-T-5038 Type IV
Plain weave
Thickness: 0.030-0.040 inch
Tensile strength: min. 550 lbs
Shade: Steel Grey
Request a quote
Contact Us
NWFS-PIA-9101
Tape, nylon, 5/8 inch wide
PIA-T-5038 Type IV
Plain weave
Thickness: 0.030-0.040 inch
Tensile strength: min. 625 lbs
Shade: Steel Grey
Request a quote
Contact Us
NWFS-PIA-9102
Tape, nylon, 1 inch wide
PIA-T-5038 Type IV
Plain weave
Thickness: 0.030-0.040 inch
Tensile strength: min. 1000 lbs
Shade: Steel Grey
Request a quote
Contact Us
NWFS-PIA-9103
Tape, nylon, 1-1/8 inch wide
PIA-T-5038 Type IV
Plain weave
Thickness: 0.030-0.040 inch
Tensile strength: min. 1100 lbs
Shade: Steel Grey
Request a quote
Contact Us
NWFS-PIA-9104
Tape, nylon, 1-1/2 inch wide
PIA-T-5038 Type IV
Plain weave
Thickness: 0.030-0.040 inch
Tensile strength: min. 1500 lbs
Shade: Steel Grey
Request a quote
Contact Us
NWFS-PIA-9105
Tape, nylon, 9/16 inch wide
PIA-T-5038 Type V
Herringbone Twill Weave
Thickness: 0.020-0.030 inch
Tensile strength: min. 500 lbs
Shade: Olive Green
Request a quote
Contact Us
NWFS-PIA-9106
Tape, nylon, 1-23/32 inch wide
PIA-T-5038 Type VI
Herringbone Twill Weave
Thickness: 0.020-0.030 inch
Tensile strength: min. 425 lbs
Shade: Black
Request a quote
Contact Us
NWFS-PIA-9107
Tape, nylon, 1 inch wide
PIA-T-5038 Type VII
Plain weave
Thickness: 0.012-0.020 inch
Tensile strength: min. 325 lbs
Shade:
Request a quote
Contact Us
