Mil-PIA-Spec - Nylon - MIL-W-4088
MIL-W-4088K, WEBBING, TEXTILE, WOVEN NYLON
Shuttle loom
Tapes & Webbings can be Supplied in any shades with Resin Treatment as per MIL-W-27265 E Class R
| Our Code | Type | Class | Width/Dia (Inch) | Thick(Inch) | B/S (Min) pound | Elong % (Min) at Break | Pick(Inch) | Weave |
|---|---|---|---|---|---|---|---|---|
| NWFS-PIA-9000 | I | 1 | 9/16 ± 1/32 | 0.025 - 0.040 | 500 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9001 | IA | 1 | 3/4 ± 1/32 | 0.025 - 0.035 | 600 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9002 | IB | 1 | 3/8 ± 1/32 | 0.025 - 0.040 | 340 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9003 | II | 1 | 1 ± 1/32 | 0.025 - 0.040 | 600 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9004 | III | 1 | 1 - 1/4 ± 1/32 | 0.025 - 0.040 | 800 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9005 | IV | 1 | 3 ± 1/8 | 0.025 - 0.040 | 1,800 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9006 | VI | 1 | 1 - 23/32 ± 1/16 | 0.030 - 0.050 | 2,500 | N/A | 21 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9007 | VII | 1 | 1 - 23/32 ± 1/16 | 0.06 - 0.100 | 6,000 | N/A | 26 | Double Plain (2 up, 2 down) |
| NWFS-PIA-9008 | VIII | 1 | 1 - 23/32 ± 1/16 | 0.040 - 0.070 | 4,000 | N/A | 36 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9009 | VIIIa | 1 | 3 ± 3/32 | 0.040 - 0.070 | 6,300 | N/A | 18 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9010 | VIIIb | 1 | 2 ± 1/16 | 0.040 - 0.070 | 4,500 | N/A | 18 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9011 | VIIIc | 1 | 2 - 1/4 ± 1/16 | 0.040 - 0.070 | 5,300 | N/A | 18 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9012 | IX | 1 | 3 ± 3/32 | 0.065 - 0.100 | 9,000 | N/A | 28 | Double Plain (2 up, 2 down) |
| NWFS-PIA-9013 | X | 1 | 1 - 23/32 ± 3/32 | 0.105 - 0.140 | 9,500 | N/A | 22 | Double Plain (2 up, 2 down) |
| NWFS-PIA-9014 | XII | 1 | 1 - 23/32 ± 1/16 | 0.025 - 0.040 | 1,200 | N/A | 34 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9015 | XIII | 1 | 1 - 23/32 ± 3/32 | 0.080 - 0.120 | 7,000 | N/A | 24 | Double Plain (2 up, 2 down) |
| NWFS-PIA-9016 | XIV | 1 | 1/2 ± 1/32 | 0.070 - 0.100 | 1,200 | N/A | 26 | Herringbone Twill (5 up, 1 down, 1 up, 5 down) |
| NWFS-PIA-9017 | XV | 1 | 2 ± 1/16 | 0.035 - 0.050 | 1,500 | N/A | 15 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9018 | XVI | 1 | 1 - 23/32 ± 1/16 | 0.045 - 0.080 | 4,500 | N/A | 17 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9019 | XVII | 1 | 1 ± 1/16 | 0.045 - 0.070 | 2,500 | N/A | 15 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9020 | XVIII | 1 | 1 ± 1/16 | 0.100 - 0.160 | 6,000 | N/A | 18 | Herringbone Twill (5 up, 1 down, 1 up, 5 down) |
| NWFS-PIA-9021 | XIX | 1 | 1 - 3/4 ± 3/32 | 0.100 - 0.130 | 10,000 | N/A | 18 | Herringbone Twill (5 up, 1 down, 1 up, 5 down) |
| NWFS-PIA-9022 | XX | 1 | 1 ± 3/32 | 0.170 - 0.210 | 9,000 | N/A | 19 | Cross Section Filling |
| NWFS-PIA-9023 | XXI | 1 | 1 - 1/4 ± 1/16 | 0.065 - 0.085 | 3,600 | N/A | 25 | Herringbone Twill (5 up, 1 down, 1 up, 5 down) |
| NWFS-PIA-9024 | XXII | 1 | 1 - 23/32 ± 3/32 | 0.090 - 0.120 | 9,500 | N/A | 18 | Body- 1/3 Twill & Selvage- Double |
| NWFS-PIA-9025 | XXIII | 1 | 1 - 1/8 ± 3/32 | 0.200 - 0.300 | 12,000 | N/A | 15 | Cross section Filling |
| NWFS-PIA-9026 | XXIV | 1 | 1 - 15/16 ± 3/32 | 0.055 - 0.075 | 5,500 | N/A | 17 | Herringbone Twill (2 up, 2 down) |
| NWFS-PIA-9027 | XXV | 1 | 1 ± 1/16 | 0.080 - 0.125 | 4,500 | N/A | 22 | Double Plain |
| NWFS-PIA-9028 | XXVI | 1 | 1 - 3/4 ± 1/16 | 0.150 - 0.180 | 15,000 | N/A | 16 | Twill |
| NWFS-PIA-9029 | XXVII | 1 | 1 - 23/32 ± 1/16 | 0.085 - 0.110 | 6,500 | N/A | 24 | Cross Section |
| NWFS-PIA-9030 | XXVIII | 1 | 2 - 1/4 ± 3/32 | 0.085 - 0.110 | 8,700 | N/A | 22 | Double Plain |

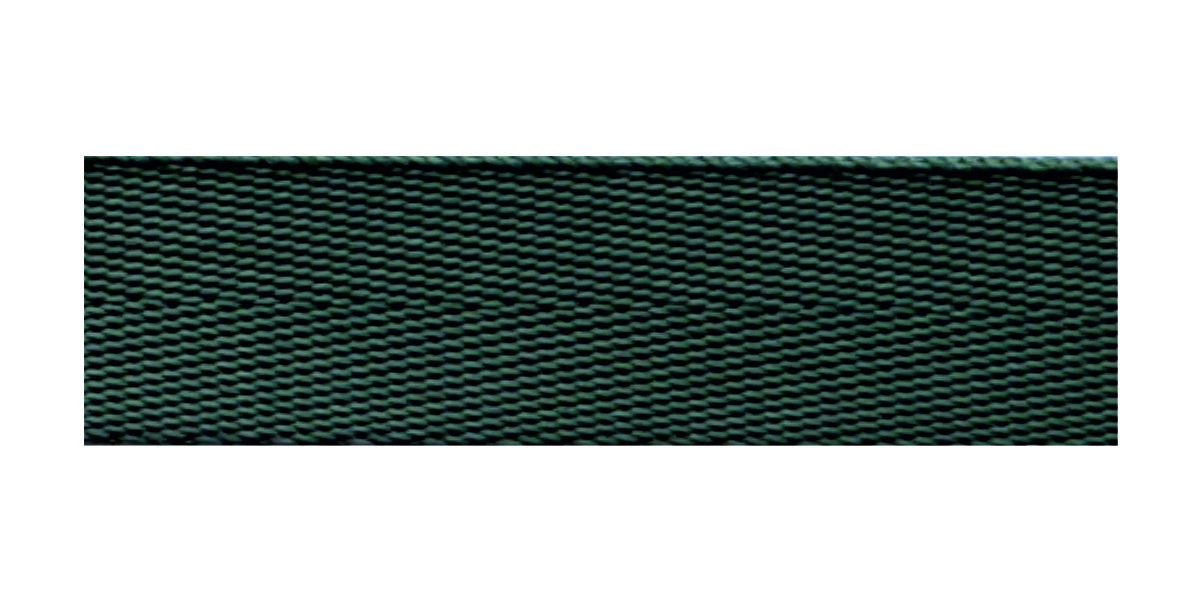

NWFS-PIA-9000
Tape, nylon, 9/16 inch wide
PIA-W-4088 Type I
Herringbone Twill Weave
Thickness: 0.025-0.040 inch
Tensile strength: min. 500 lbs
Shade: Foliage Green
$ 0.398 per yard
Get this deal

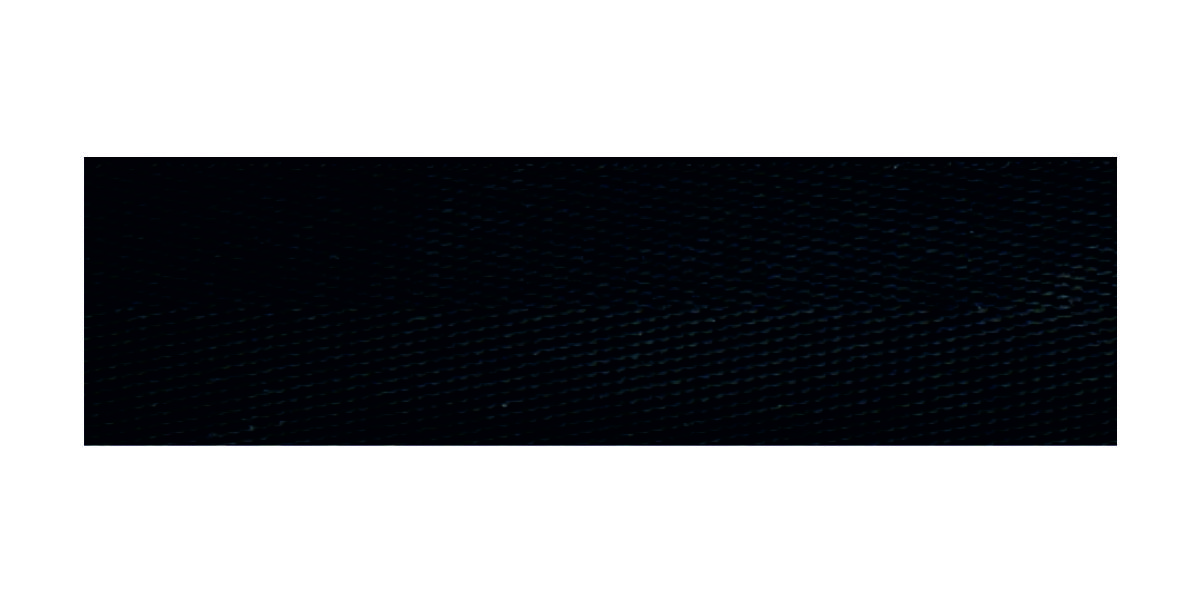

NWFS-PIA-9001
Tape, nylon, 3/4 inch wide
PIA-W-4088 Type Ia
Herringbone Twill Weave
Thickness: max. 0.025-0.035 inch
Tensile strength: min. 600 lbs
Shade: Black
$ 0.410 per yard
Get this deal

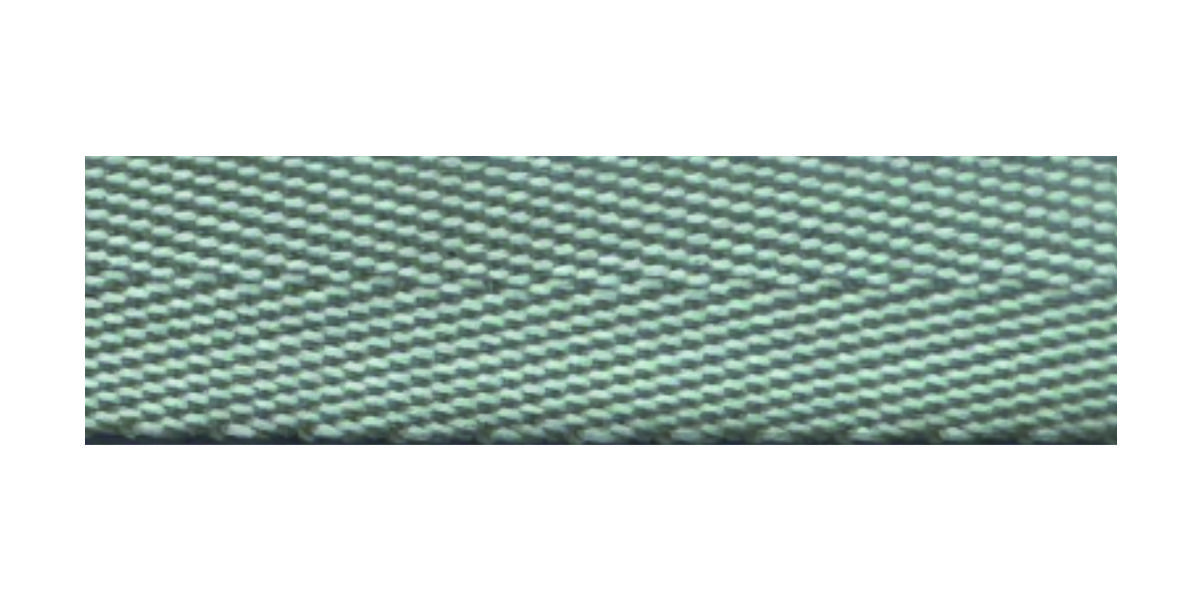

NWFS-PIA-9002
Tape, nylon, 3/8 inch wide
PIA-W-4088 Type Ib
Herringbone Twill Weave
Thickness: 0.025-0.040 inch
Tensile strength: min. 340 lbs
Shade: Natural
Request a quote
Get this deal

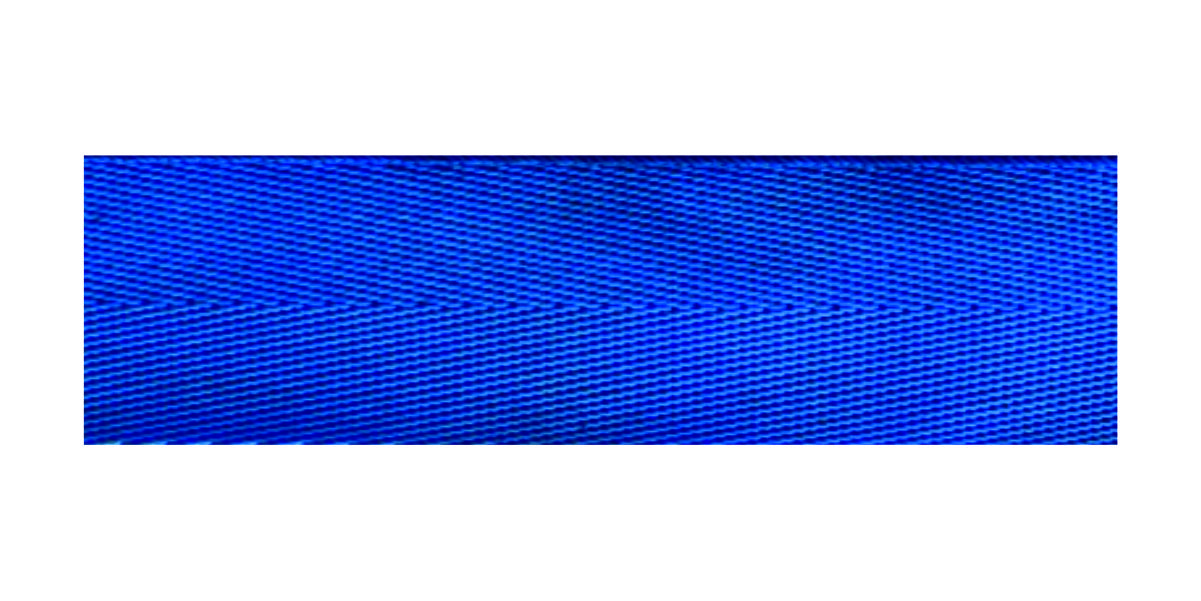

NWFS-PIA-9003
Tape, nylon, 1 inch wide
PIA-W-4088 Type II
Herringbone Twill Weave
Thickness: 0.025-0.040 inch
Tensile strength: min. 600 lbs
Shade: Blue
Request a quote
Contact Us

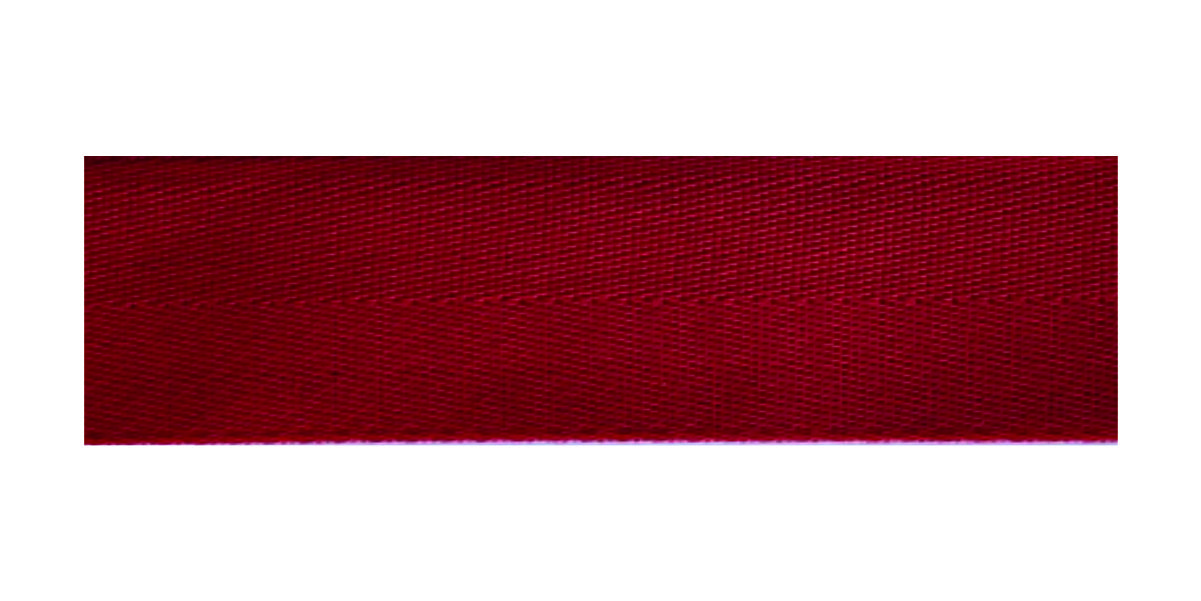

NWFS-PIA-9004
Tape, nylon, 1-1/4 inch wide
PIA-W-4088 Type III
Herringbone Twill Weav
Thickness: 0.025-0.040 inch
Tensile strength: min. 800 lbs
Shade: Blood Red
Request a quote
Contact Us

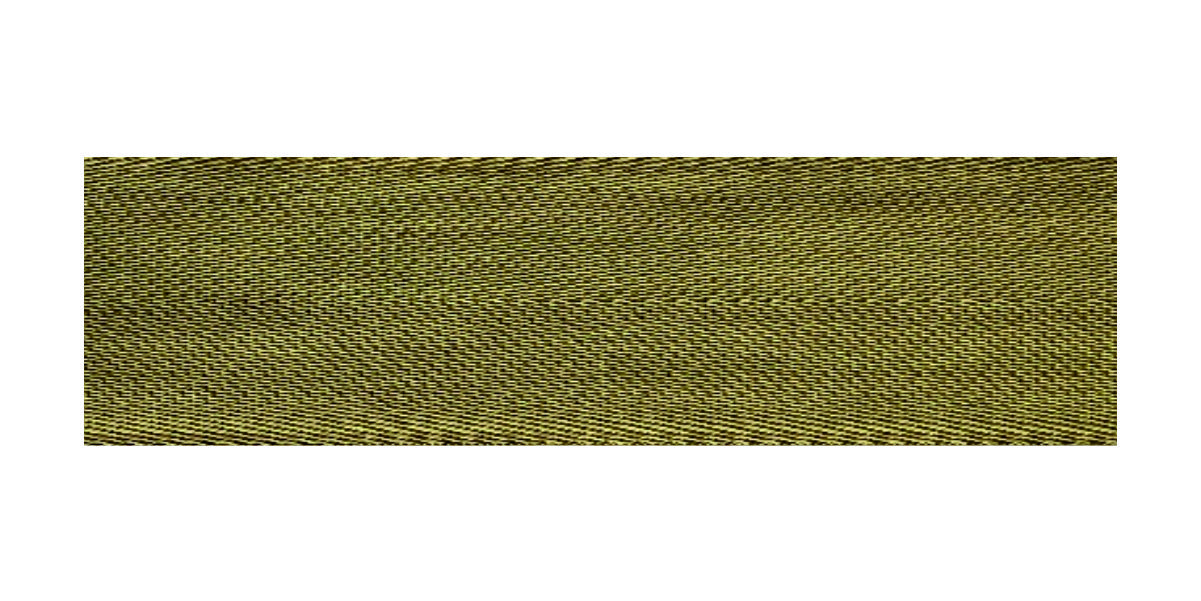

NWFS-PIA-9005
Tape, nylon, 3 inch wide
PIA-W-4088 Type IV
Herringbone Twill Weave
Thickness: 0.25-0.040 inch
Tensile strength: min. 1800 lbs
Shade: Khakhi
Request a quote
Contact Us

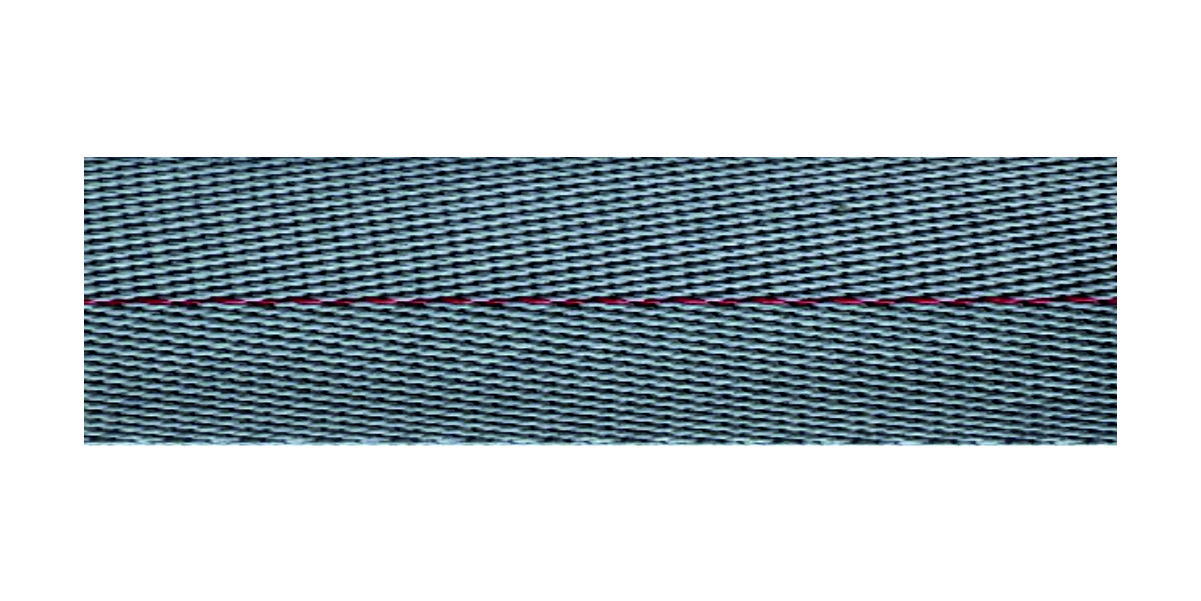

NWFS-PIA-9006
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type VI
Herringbone Twill Weave
Thickness: 0.030-0.050 inch
Tensile strength: min. 2500 lbs
Shade: Steel Grey
Request a quote
Contact Us

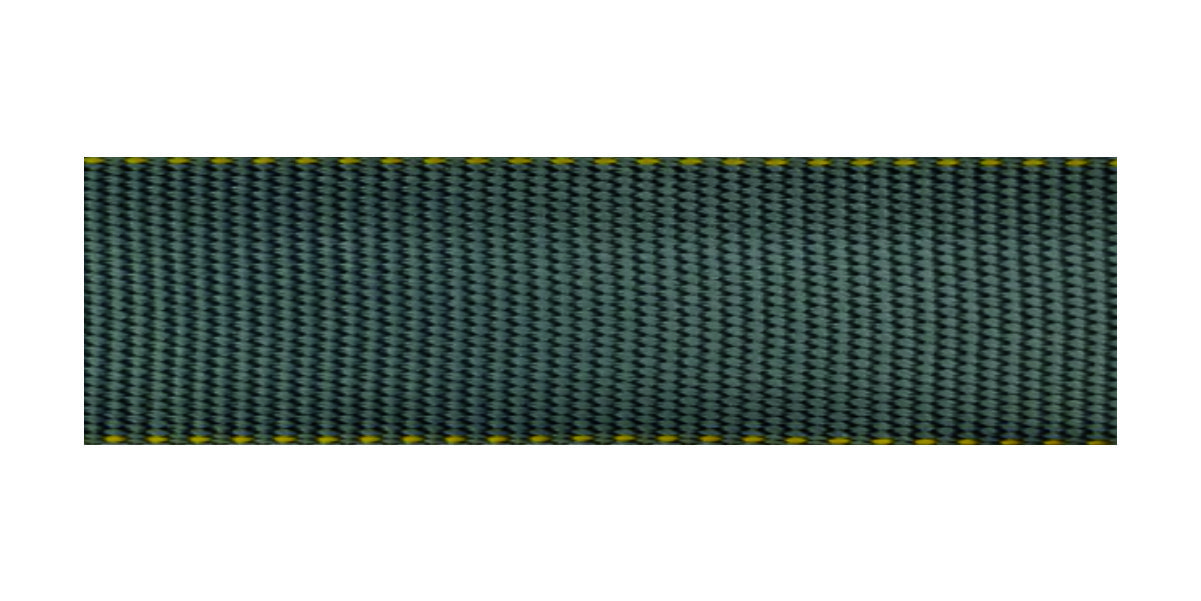

NWFS-PIA-9007
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type VII
Double Plain weave
Thickness: 0.060-0.100 inch
Tensile strength: min. 6000 lbs
Shade: Foliage Green
Request a quote
Contact Us

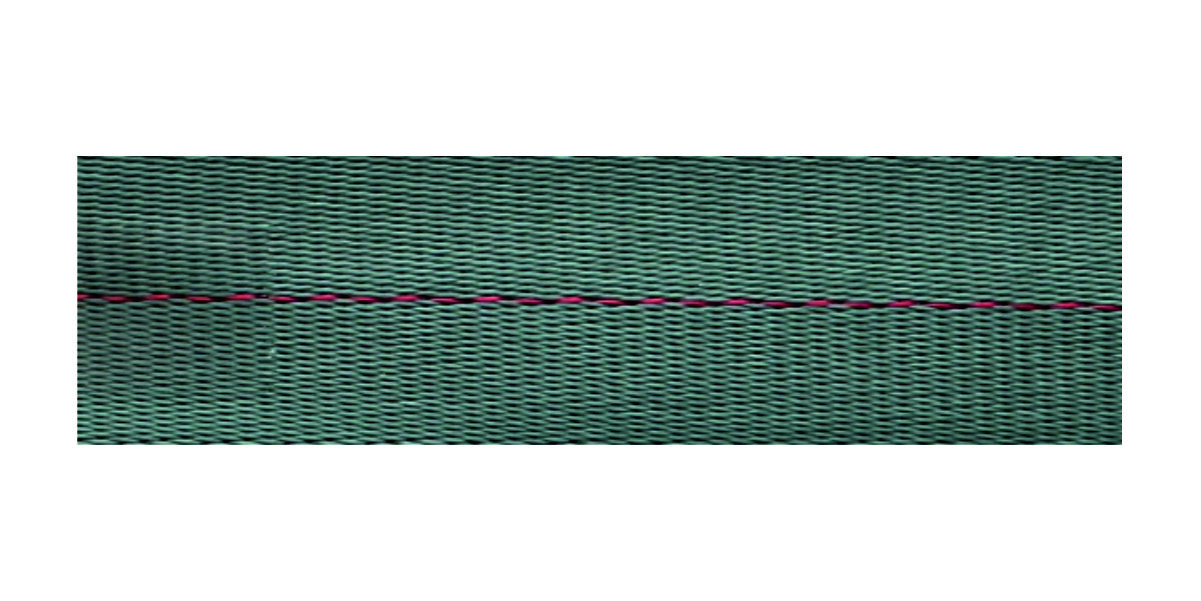

NWFS-PIA-9008
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type VIII
Herringbone Twill Weave
Thickness: 0.040-0.070 inch
Tensile strength: min. 4000 lbs
Shade: Foliage Green
Request a quote
Contact Us

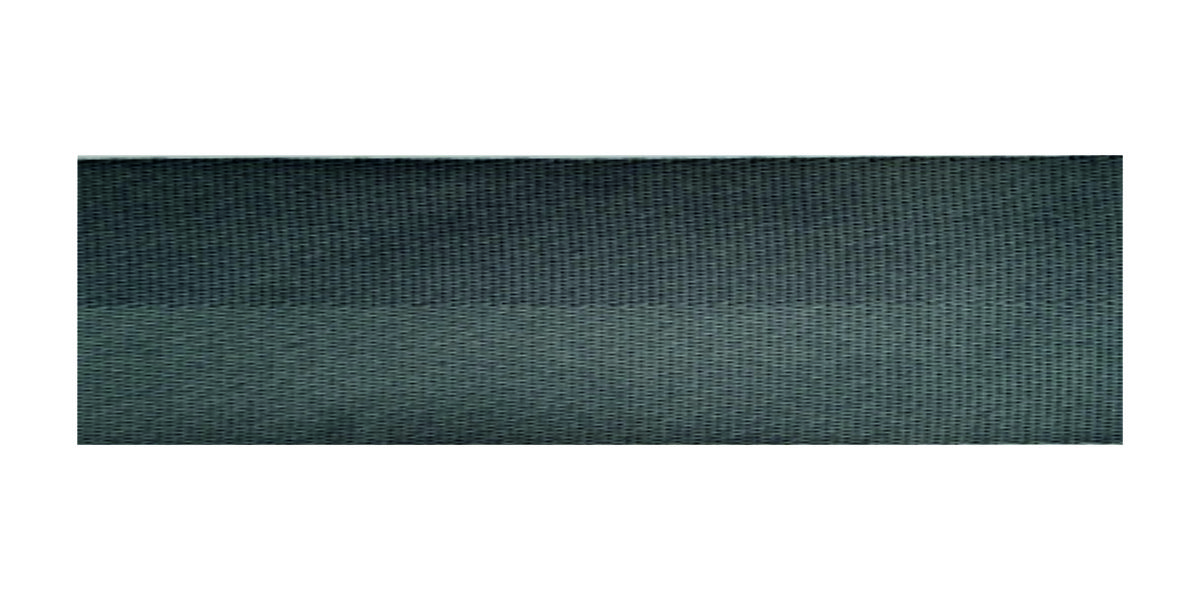

NWFS-PIA-9009
Tape, nylon, 3 inch wide
PIA-W-4088 Type VIIIa
Herringbone Twill Weave
Thickness: 0.040-0.070 inch
Tensile strength: min. 6300 lbs
Shade: Black
Request a quote
Contact Us

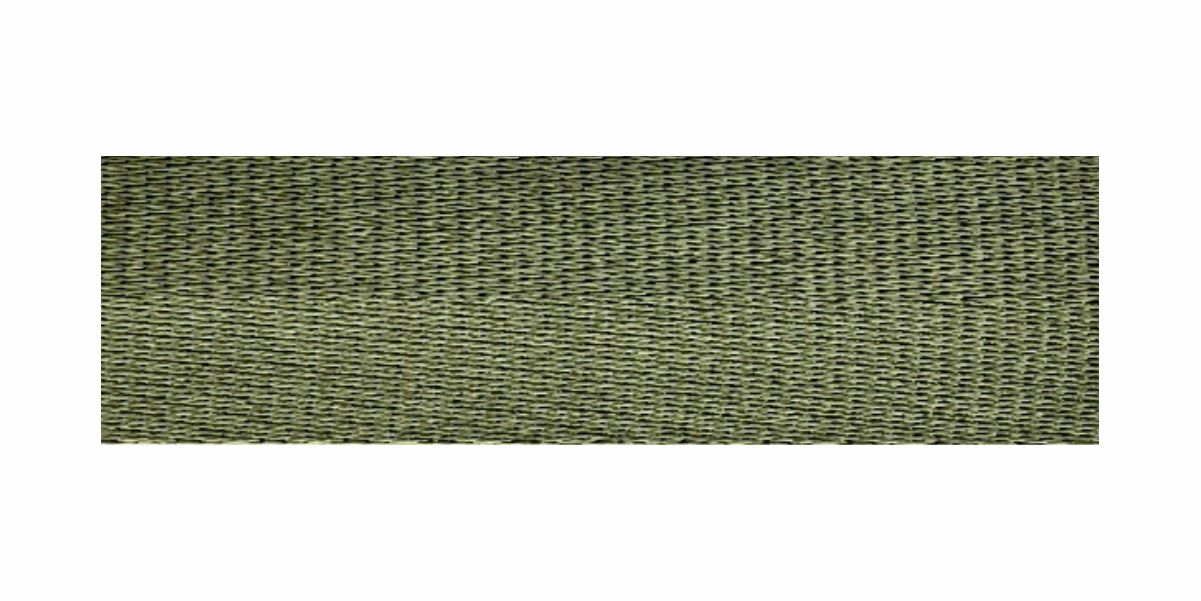

NWFS-PIA-9010
Tape, nylon, 2 inch wide
PIA-W-4088 Type VIIIb
Herringbone Twill Weave
Thickness: 0.040-0.070 inchh
Tensile strength: min. 4500 lbs
Shade: Olive Drab
Request a quote
Contact Us

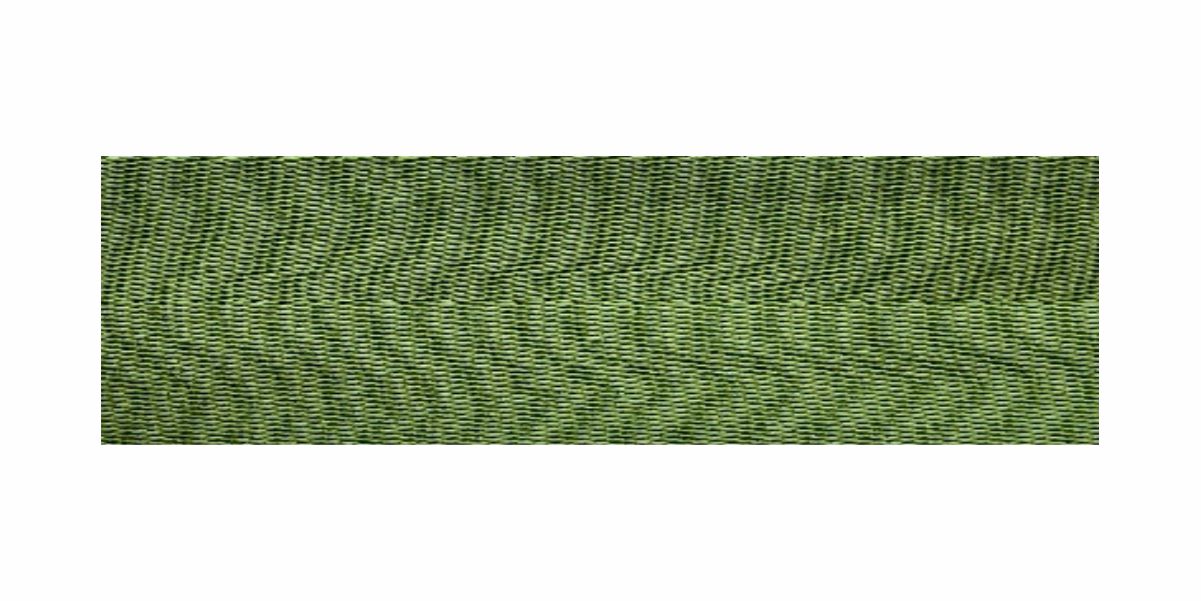

NWFS-PIA-9011
Tape, nylon, 2-1/4 inch wide
PIA-W-4088 Type VIIIc
Herringbone Twill Weave
Thickness: 0.040-0.070 inch
Tensile strength: min. 5300 lbs
Shade: Olive Green
Request a quote
Contact Us

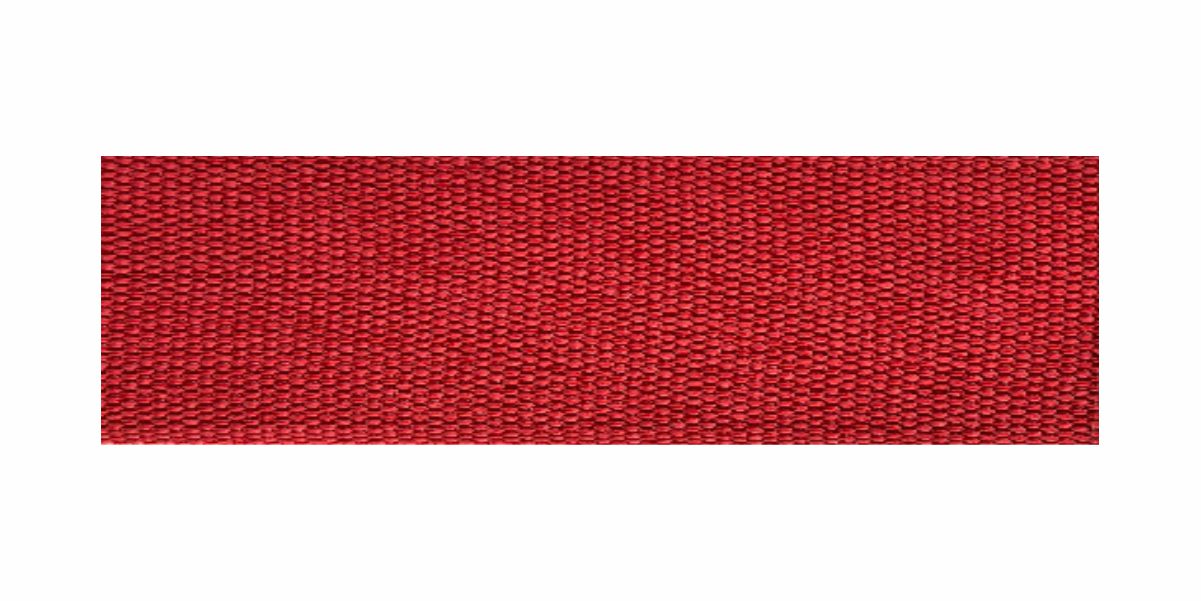

NWFS-PIA-9012
Tape, nylon, 3 inch wide
PIA-W-4088 Type IX
Double Plain weave
Thickness: 0.065-0.100 inch
Tensile strength: min. 9000 lbs
Shade: Red
Request a quote
Contact Us

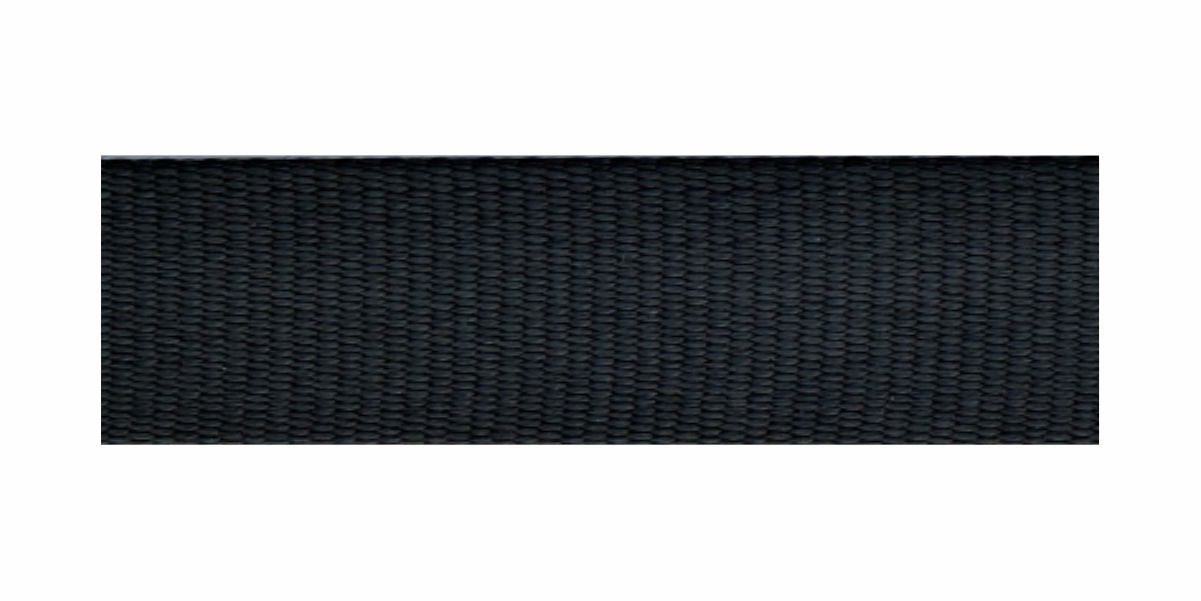

NWFS-PIA-9013
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type X
Double Plain weave
Thickness: 0.105-0.140 inch
Tensile strength: min. 9500 lbs
Shade: Black
Request a quote
Contact Us

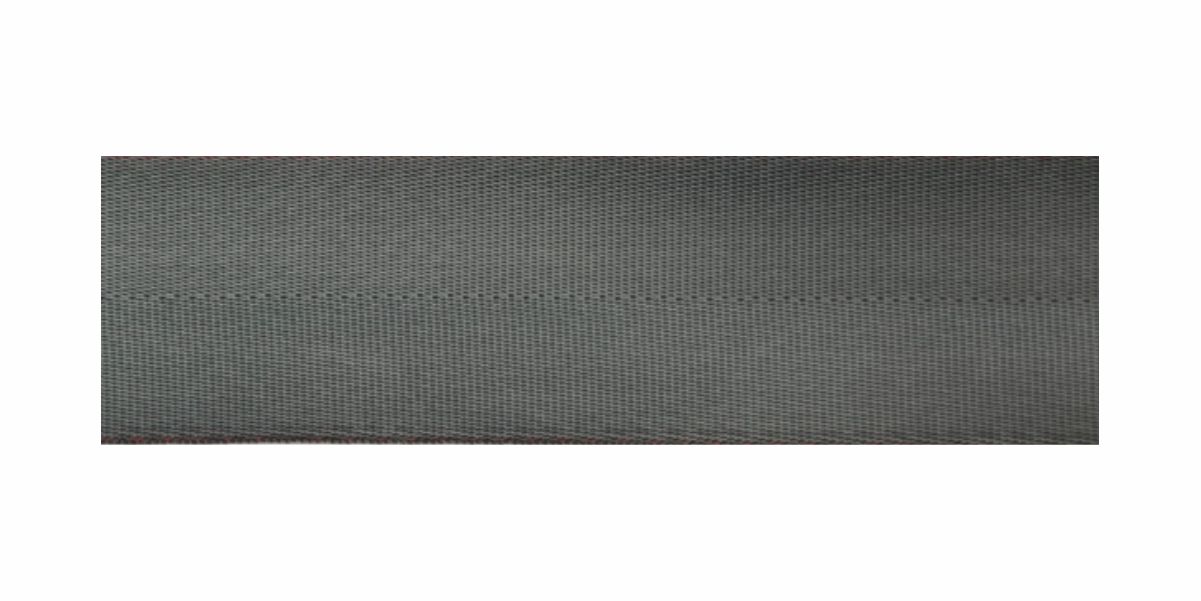

NWFS-PIA-9014
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type XII
Herringbone Twill Weave
Thickness: 0.025-0.040 inch
Tensile strength: min. 1200 lbs
Shade: Foliage Green
Request a quote
Contact Us

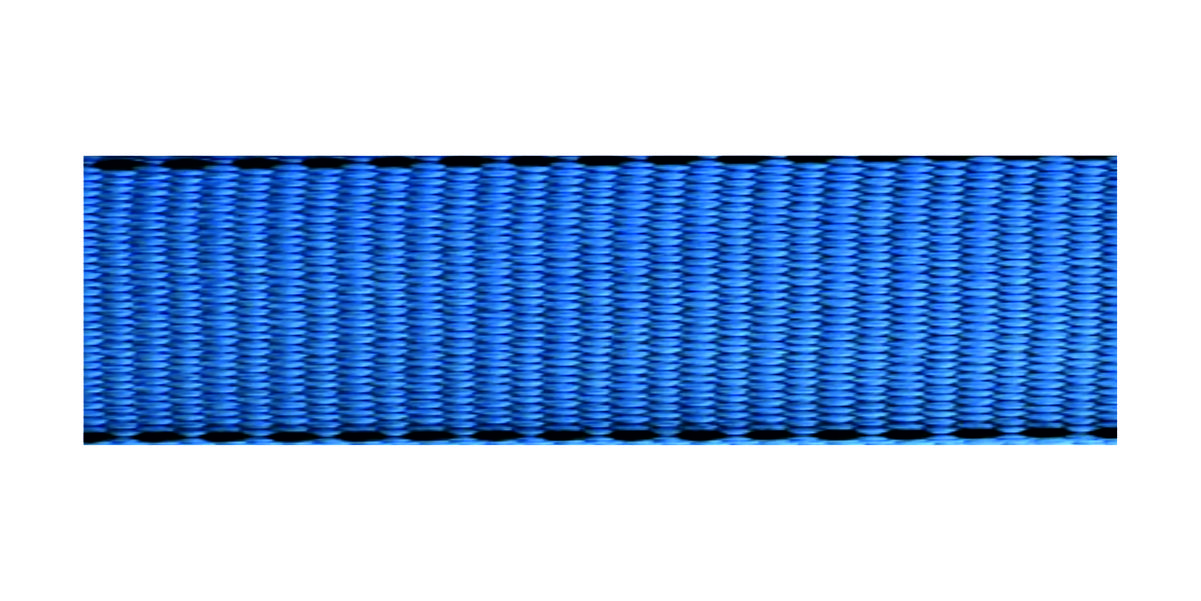

NWFS-PIA-9015
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type XIII
Double Plain weave
Thickness: 0.080-0.120 inch
Tensile strength: min. 7000 lbs
Shade: Royal Blue
Request a quote
Contact Us

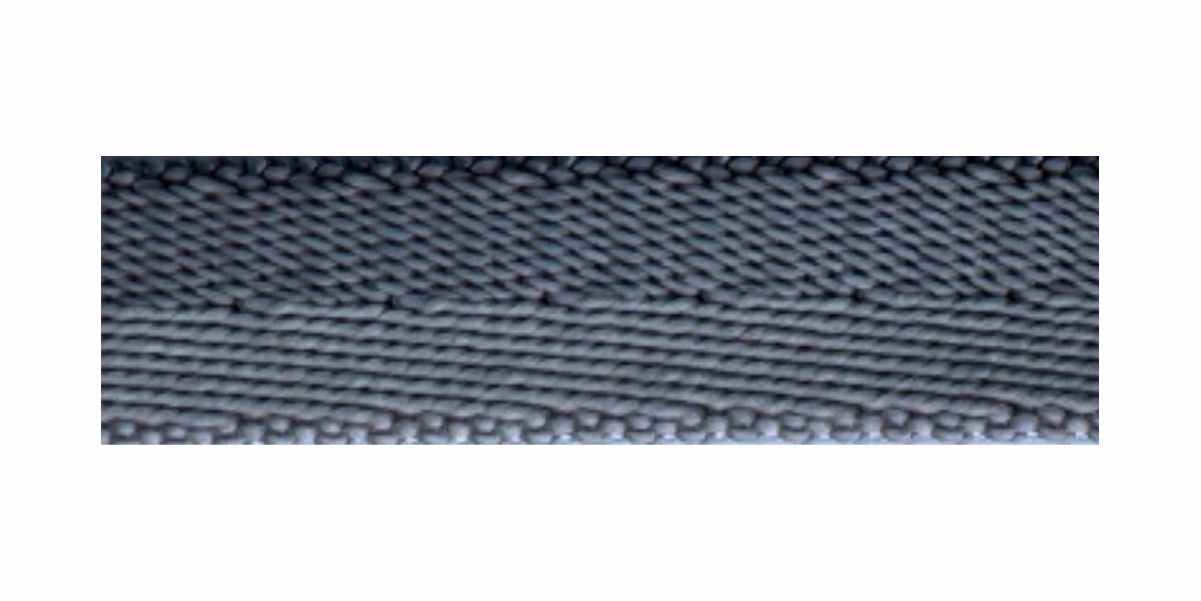

NWFS-PIA-9016
Tape, nylon, 1/2 inch wide
PIA-W-4088 Type XIV
Herringbone Twill Weave
Thickness: 0.070-0.100 inch
Tensile strength: min. 1200 lbs
Shade: Steel Grey
Request a quote
Contact Us

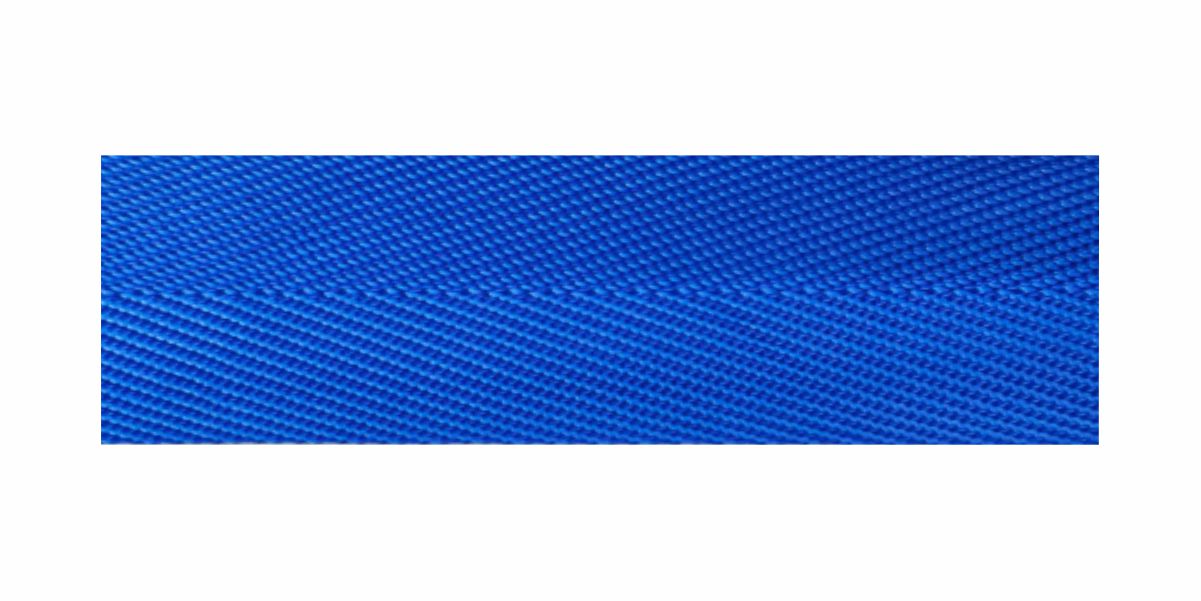

NWFS-PIA-9017
Tape, nylon, 2 inch wide
PIA-W-4088 Type XV
Herringbone Twill Weave
Thickness: 0.035-0.050 inch
Tensile strength: min. 1500 lbs
Shade: Blue
Request a quote
Contact Us

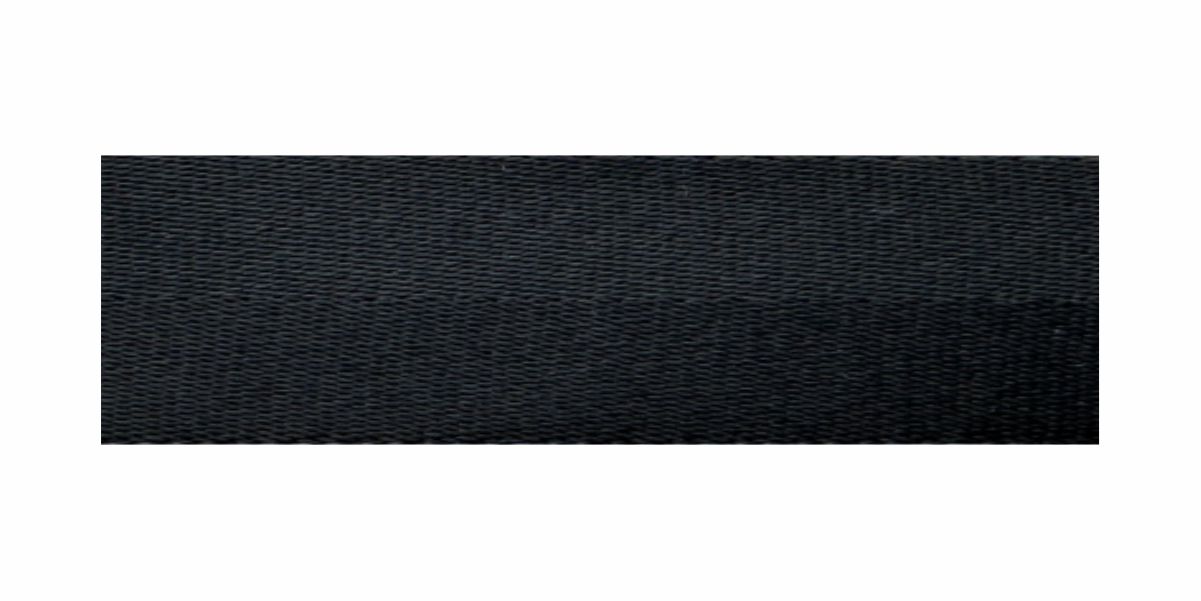

NWFS-PIA-9018
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type XVI
Herringbone Twill Weave
Thickness: 0.045-0.080 inch
Tensile strength: min. 4500 lbs
Shade: Black
Request a quote
Contact Us

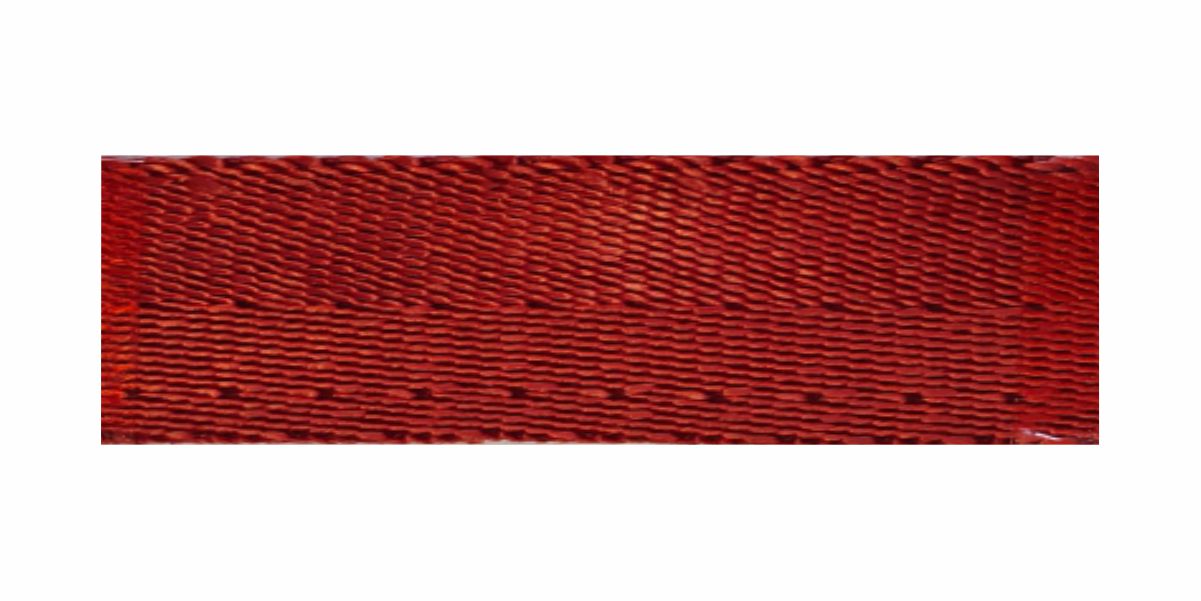

NWFS-PIA-9019
Tape, nylon, 1 inch wide
PIA-W-4088 Type XVII
Herringbone Twill Weave
Thickness: 0.045-0.070 inch
Tensile strength: min. 2500 lbs
Shade: Red
Request a quote
Contact Us

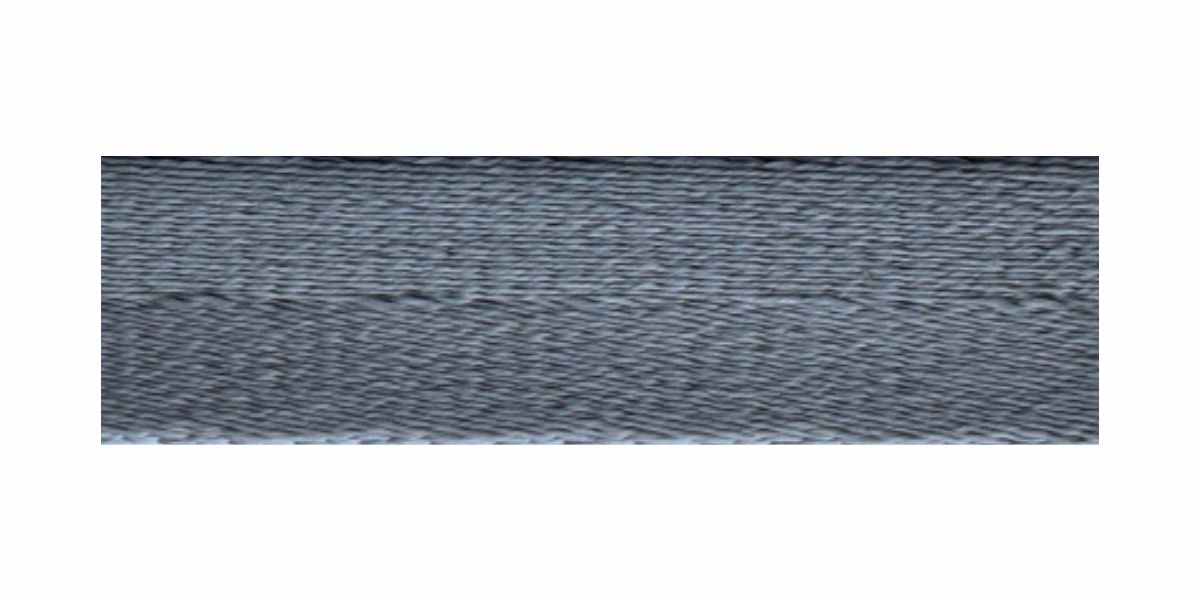

NWFS-PIA-9020
Tape, nylon, 1 inch wide
PIA-W-4088 Type XVIII
Herringbone Twill Weave
Thickness: 0.100-0.160 inch
Tensile strength: min. 6000 lbs
Shade: Steel Grey
Request a quote
Contact Us

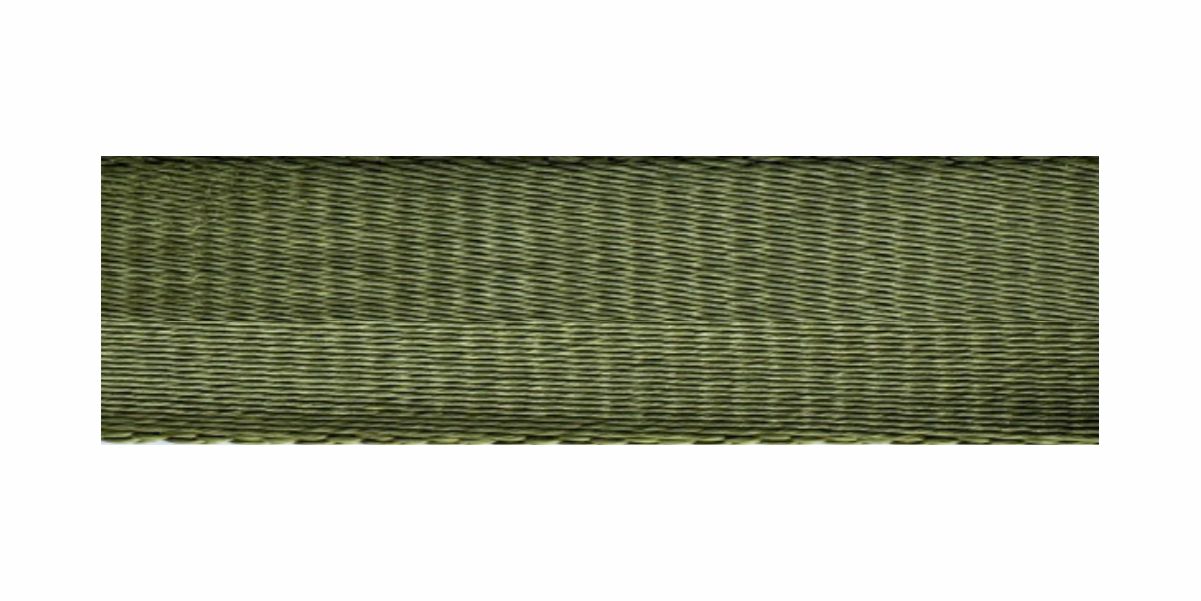

NWFS-PIA-9021
Tape, nylon, 1-3/4 inch wide
PIA-W-4088 Type XIX
Herringbone Twill Weave
Thickness: 0.100-0.130 inch
Tensile strength: min. 10,000 lbs
Shade: Olive Drab
Request a quote
Contact Us

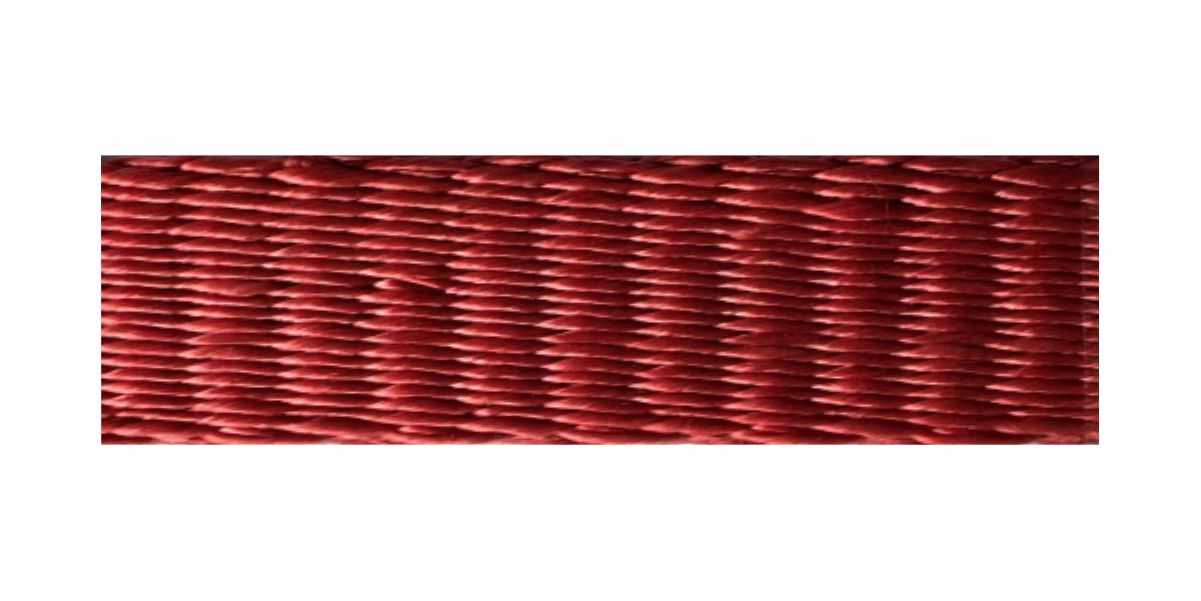

NWFS-PIA-9022
Tape, nylon, 1 inch wide
PIA-W-4088 Type XX
Cross Section Filling
Thickness: 0.170-0.210 inch
Tensile strength: min. 9000 lbs
Shade: Red
Request a quote
Contact Us

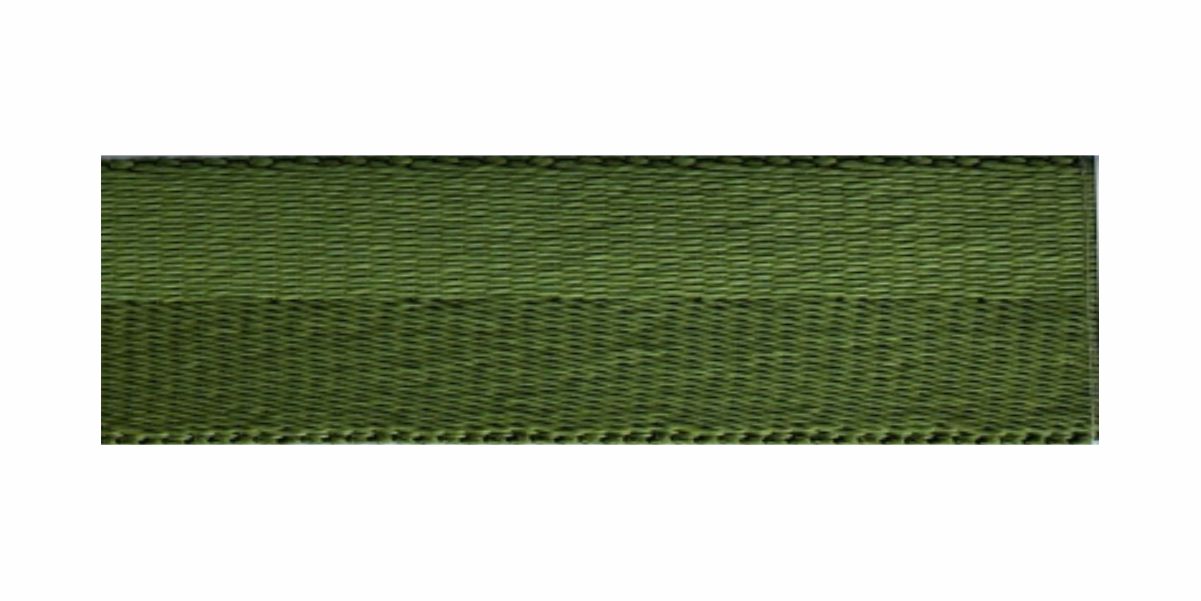

NWFS-PIA-9023
Tape, nylon, 1-1/4 inch wide
PIA-W-4088 Type XXI
Herringbone Twill Weave
Thickness: 0.065-0.085 inch
Tensile strength: min. 3600 lbs
Shade: Olive Drab
Request a quote
Contact Us

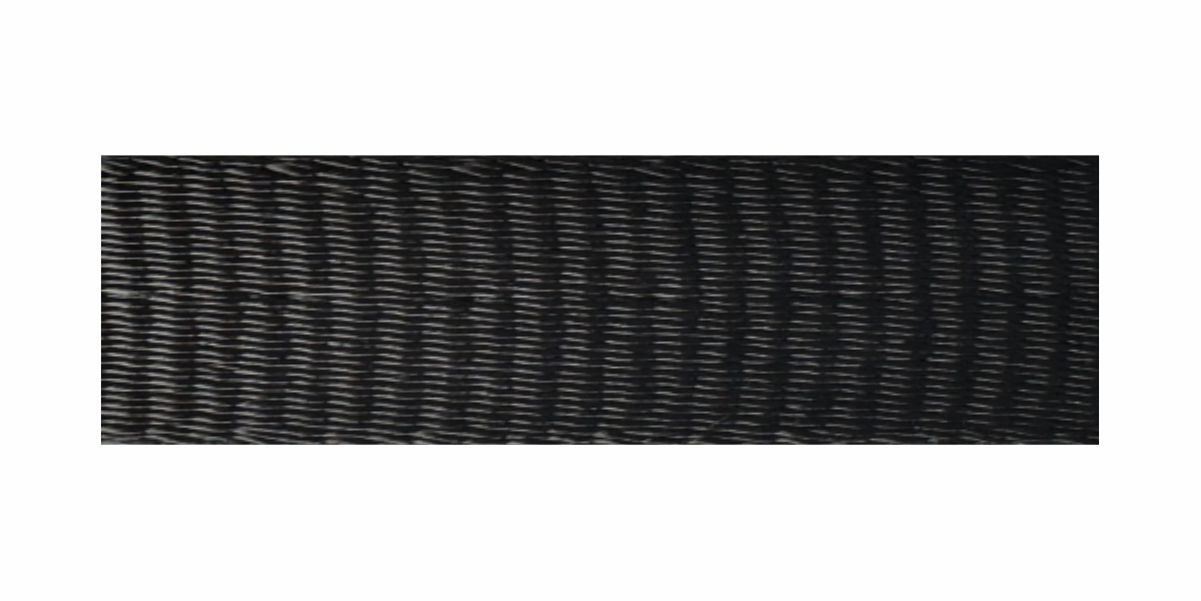

NWFS-PIA-9024
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type XXII
Double Plain weave
Thickness: 0.090-0.120 inch
Tensile strength: min. 9500 lbs
Shade: Black
Request a quote
Contact Us

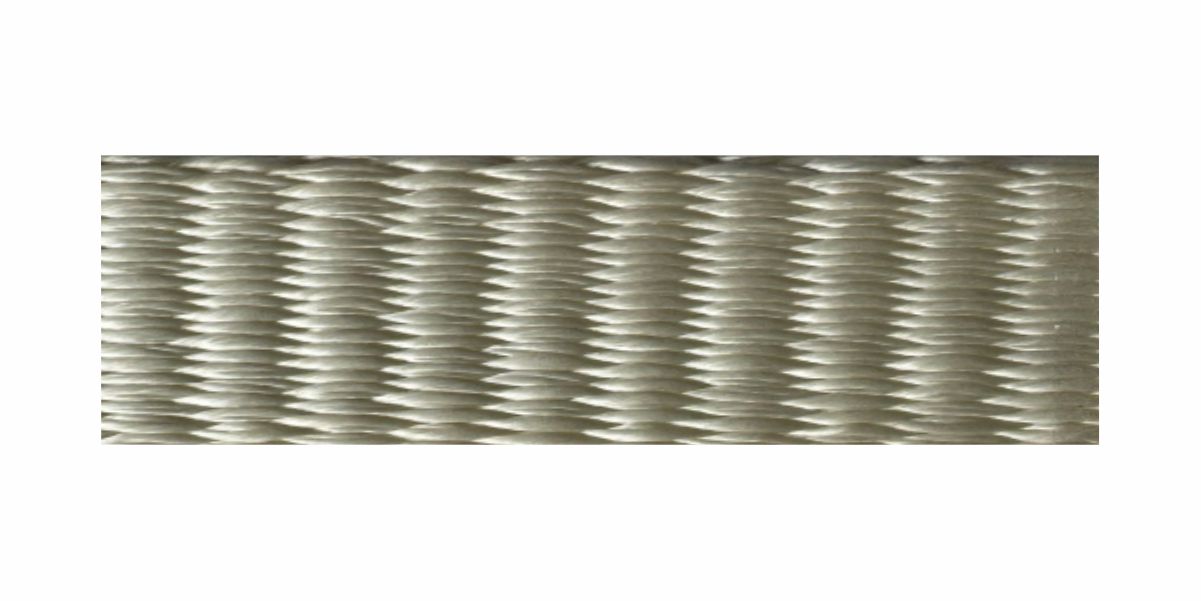

NWFS-PIA-9025
Tape, nylon, 1-1/8 inch wide
PIA-W-4088 Type XXIII
Cross Section Filling weave
Thickness: 0.200-0.300 inch
Tensile strength: min. 12000 lbs
Shade: Natural
Request a quote
Contact Us

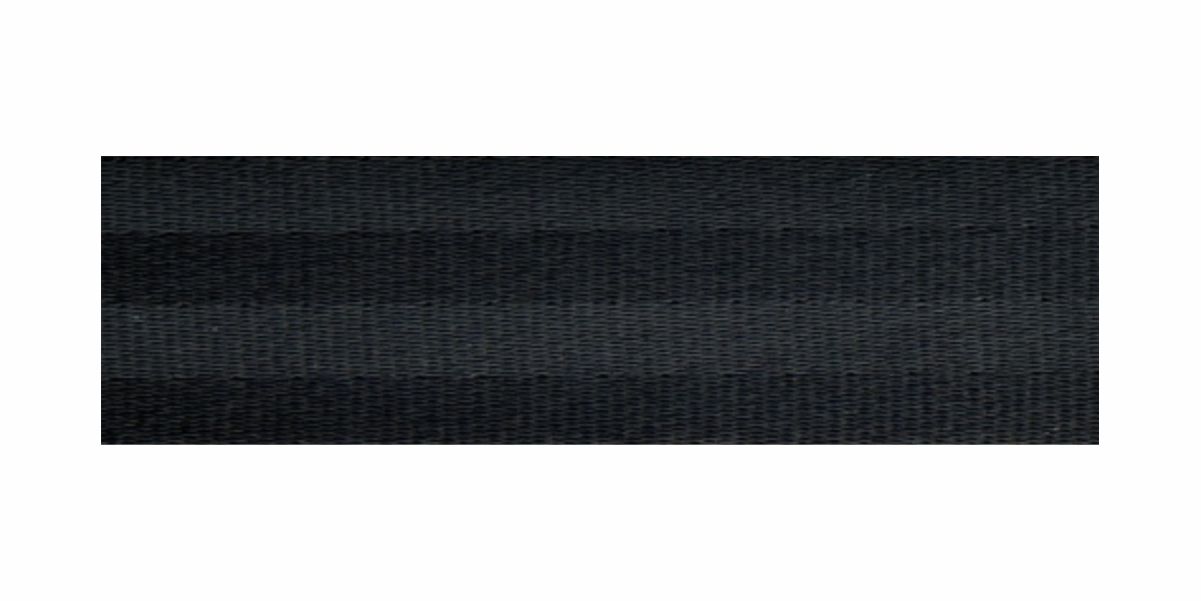

NWFS-PIA-9026
Tape, nylon, 1-15/16 inch wide
PIA-W-4088 Type XXIV
Herringbone Twill Weave
Thickness: 0.055-0.075 inch
Tensile strength: min. 5500 lbs
Shade: Black
Request a quote
Contact Us

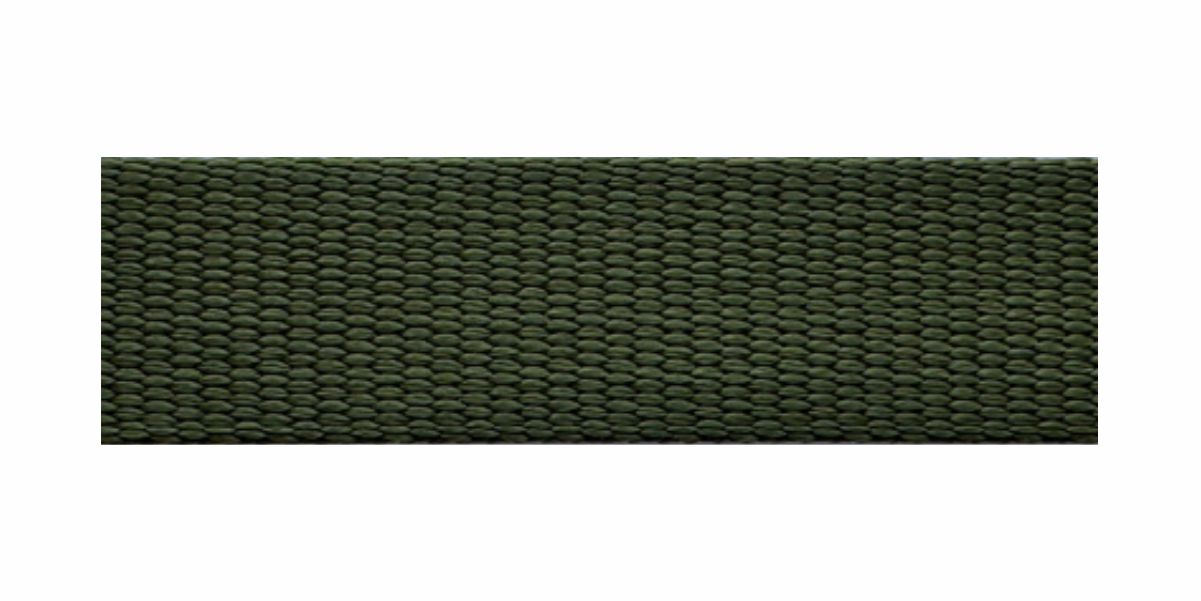

NWFS-PIA-9027
Tape, nylon, 1 inch wide
PIA-W-4088 Type XXV
Double Plain weave
Thickness: 0.080-0.125 inch
Tensile strength: min. 4500 lbs
Shade: Olive Drab
Request a quote
Contact Us

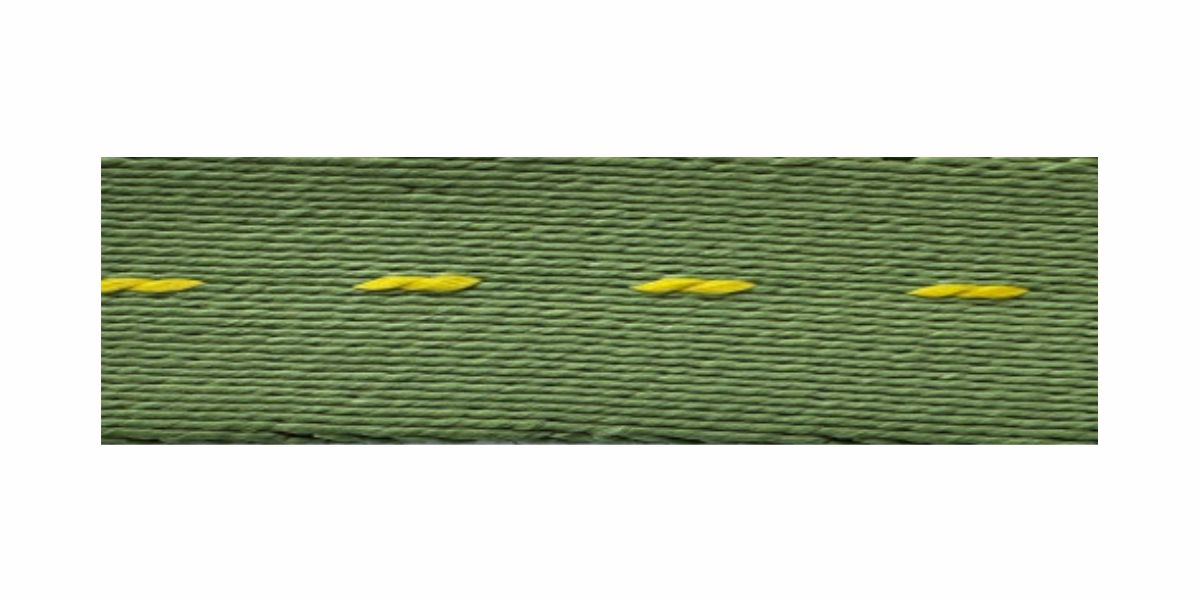

NWFS-PIA-9028
Tape, nylon, 1-3/4 inch wide
PIA-W-4088 Type XXVI
Twill weave
Thickness: 0.150-0.180 inch
Tensile strength: min. 15000 lbs
Shade: Olive Green
Request a quote
Contact Us

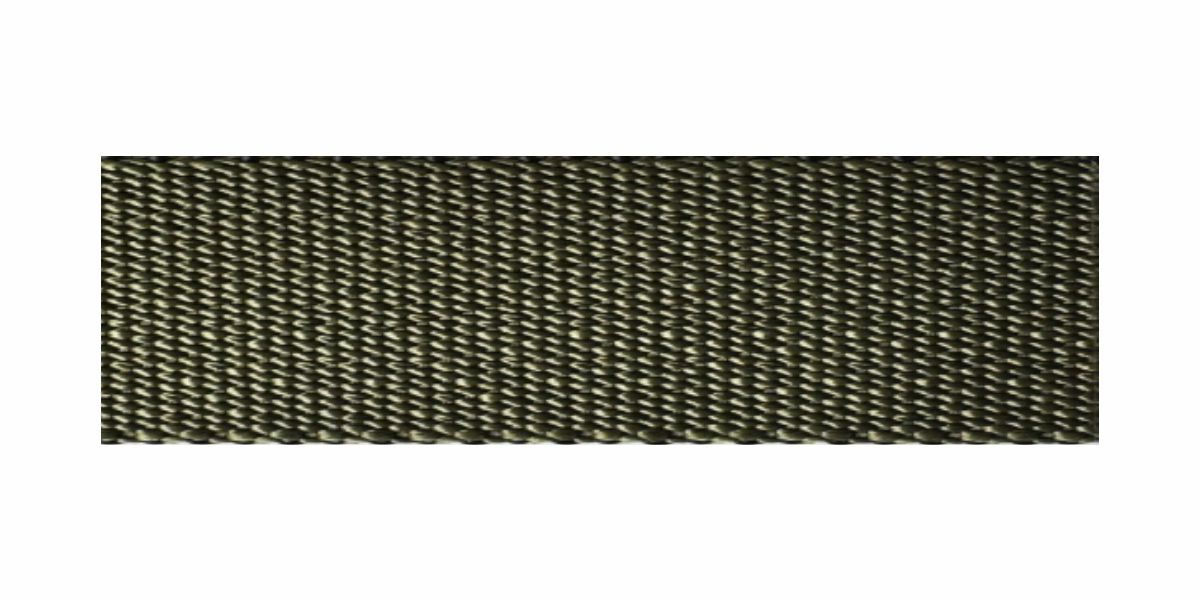

NWFS-PIA-9029
Tape, nylon, 1-23/32 inch wide
PIA-W-4088 Type XXVII
Cross Section Filling Weave
Thickness: 0.085-0.110 inch
Tensile strength: min. 6500 lbs
Shade: Olive Drab
Request a quote
Contact Us

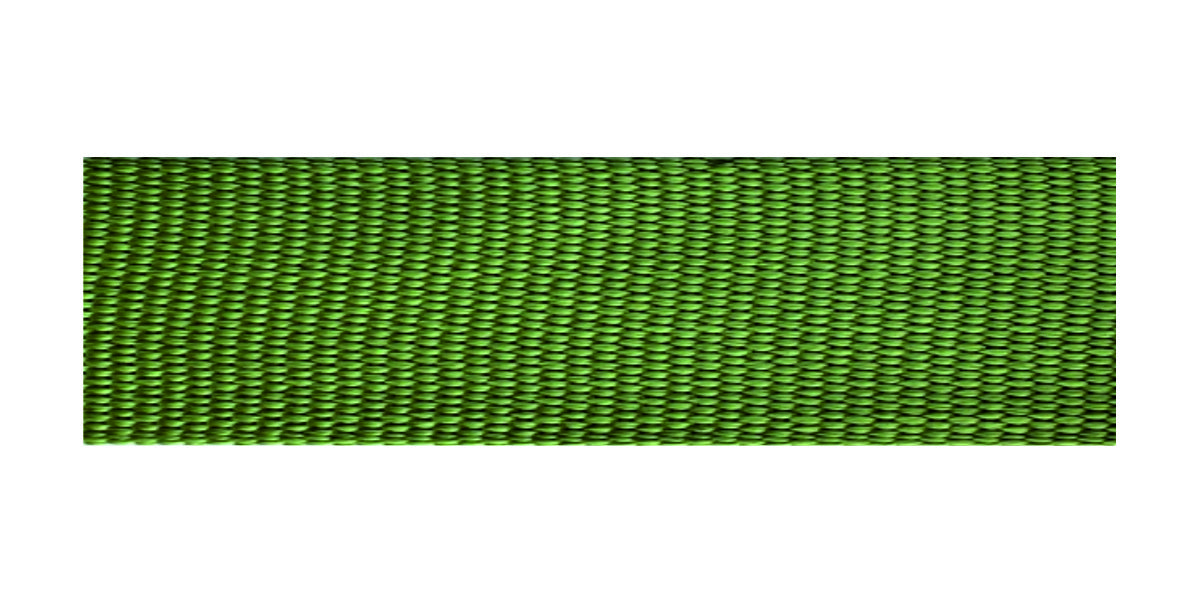

NWFS-PIA-9030
Tape, nylon, 2-1/4 inch wide
PIA-W-4088 Type XXVIII
Double Plain weave
Thickness: 0.080-0.110 inch
Tensile strength: min. 8700 lbs
Shade: Olive Green
Request a quote
Contact Us
